130mm 5-Axis Self-Centering Vise
Jergens 5-Axis Self-Centering Vises have been engineered to be the ideal solution for low-profile 5-axis workholding. Available in both 75mm and 130mm widths, these vises can accommodate a wide array of workpiece sizes. The quick-change jaws incorporate a pull-down feature to actively minimize jaw lift. Multiple jaw styles make this vise system configurable for most workholding needs, from the first operation to the finished work.
Features, Benefits, & Product Specifications:
- Low-friction surface treatment improves performance & reduces wear
-
Versatile mounting options, compatible with popular platforms
-
Leadscrew features rolled trapezoidal threads for superior strength & durability
-
The adjustable centerline allows for easy recentering
-
Clamping Force: 3,500 lbs at 50 ft-lbs
-
Hex wrench included
130mm 5-Axis Self-Centering Vise

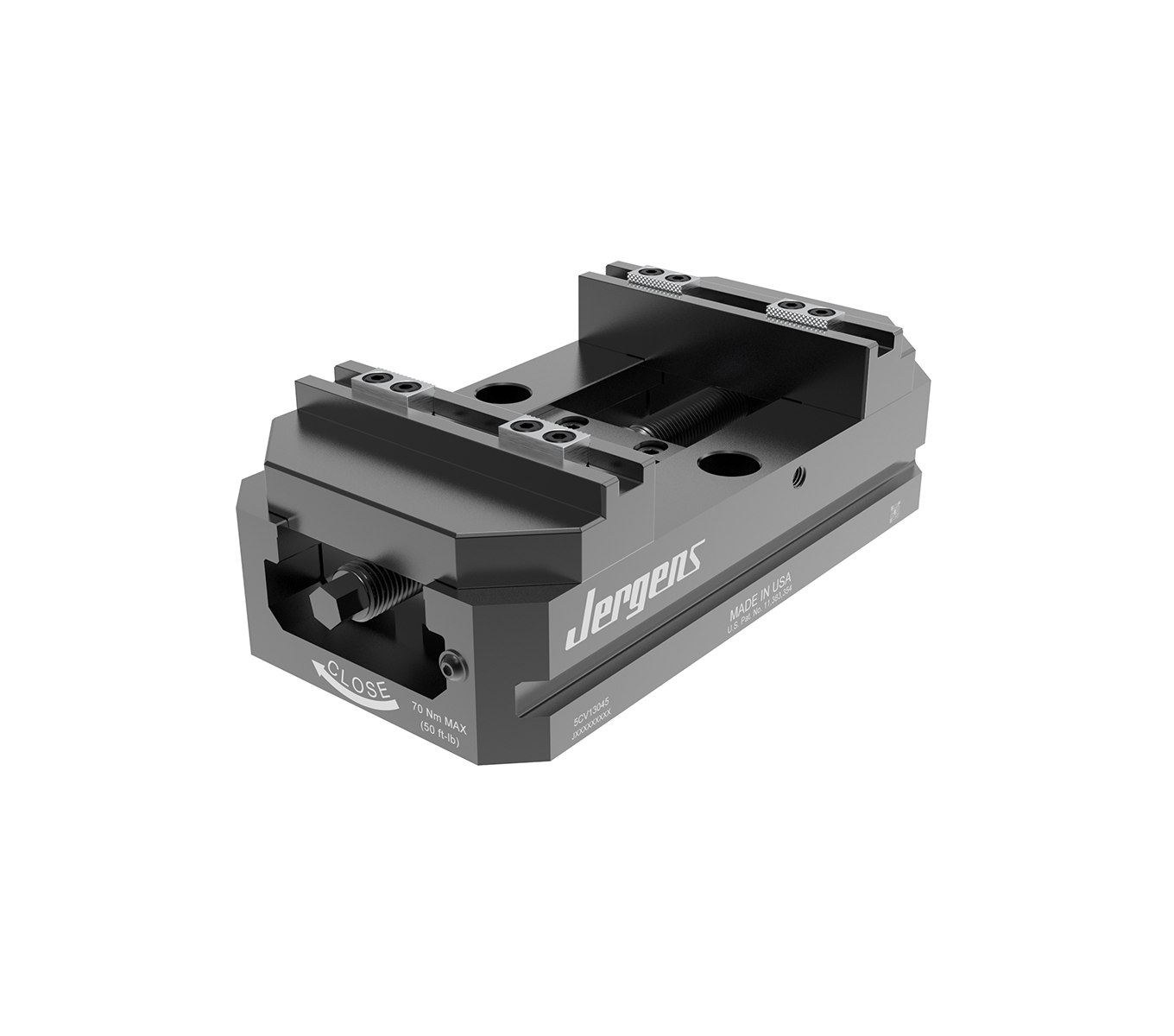

![130mm 5-Axis Self-Centering Vise 130mm 5-Axis Self-Centering Vise](/_default_upload_bucket/5CV13041-IN.png)

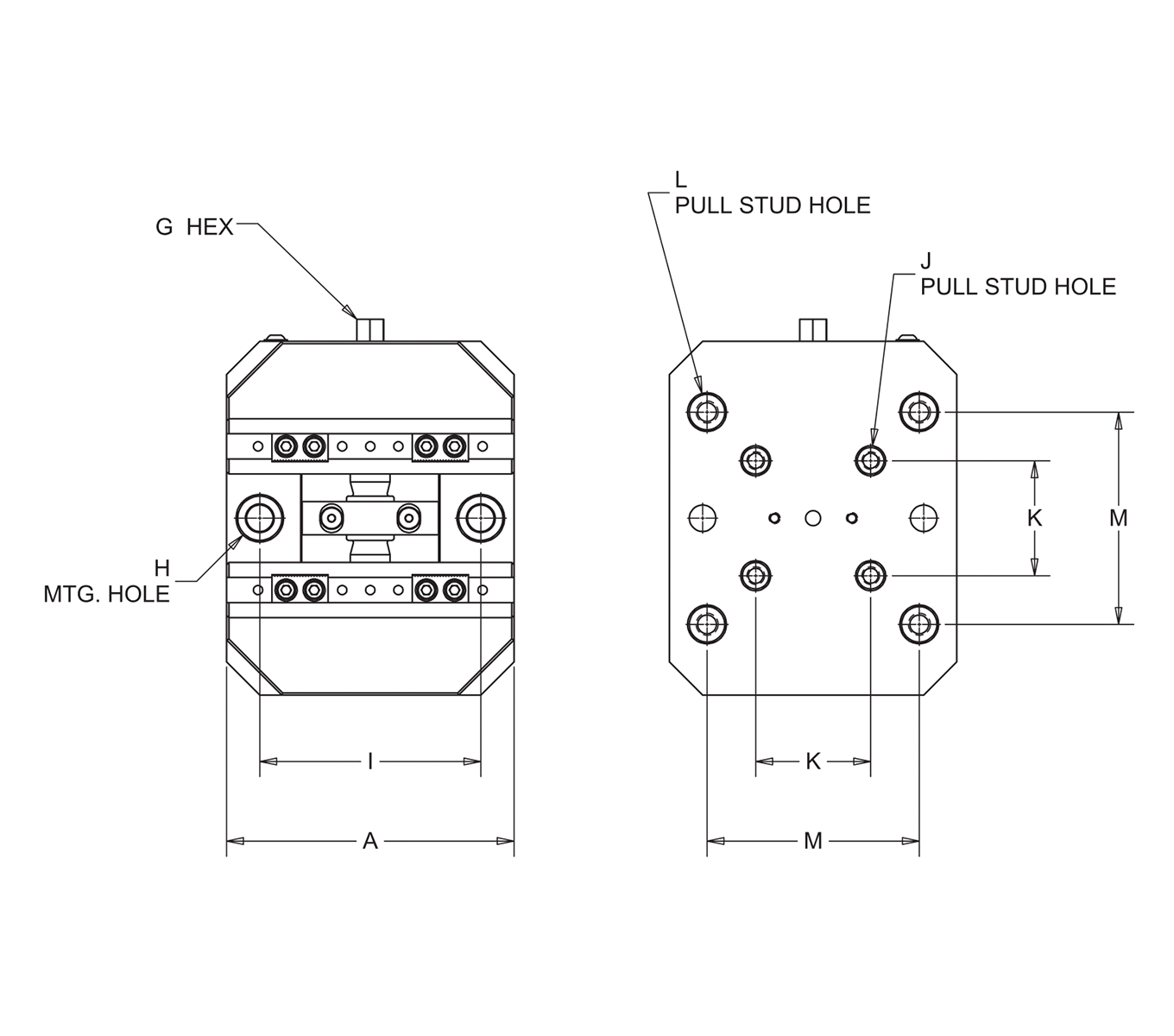

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H | I (mm) | J Part Number | K (mm) | L Part Number | M (mm) | N | Weight (kg) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5CV13041-IN |
|
Metric | 130 | 160 | 53 | 12-150 | 27 | 54 | 12 | 12mm QLS | 100 | QL-200800 | 52 | QL-200805 | 96 | M8 x 1.25 | 7.4 | |
5CV13045-IN |
|
Metric | 130 | 250 | 53 | 12-240 | 27 | 54 | 12 | 12mm QLS | 100 | QL-200800 | 52 | QL-200805 | 96 | M8 x 1.25 | 10.2 |
