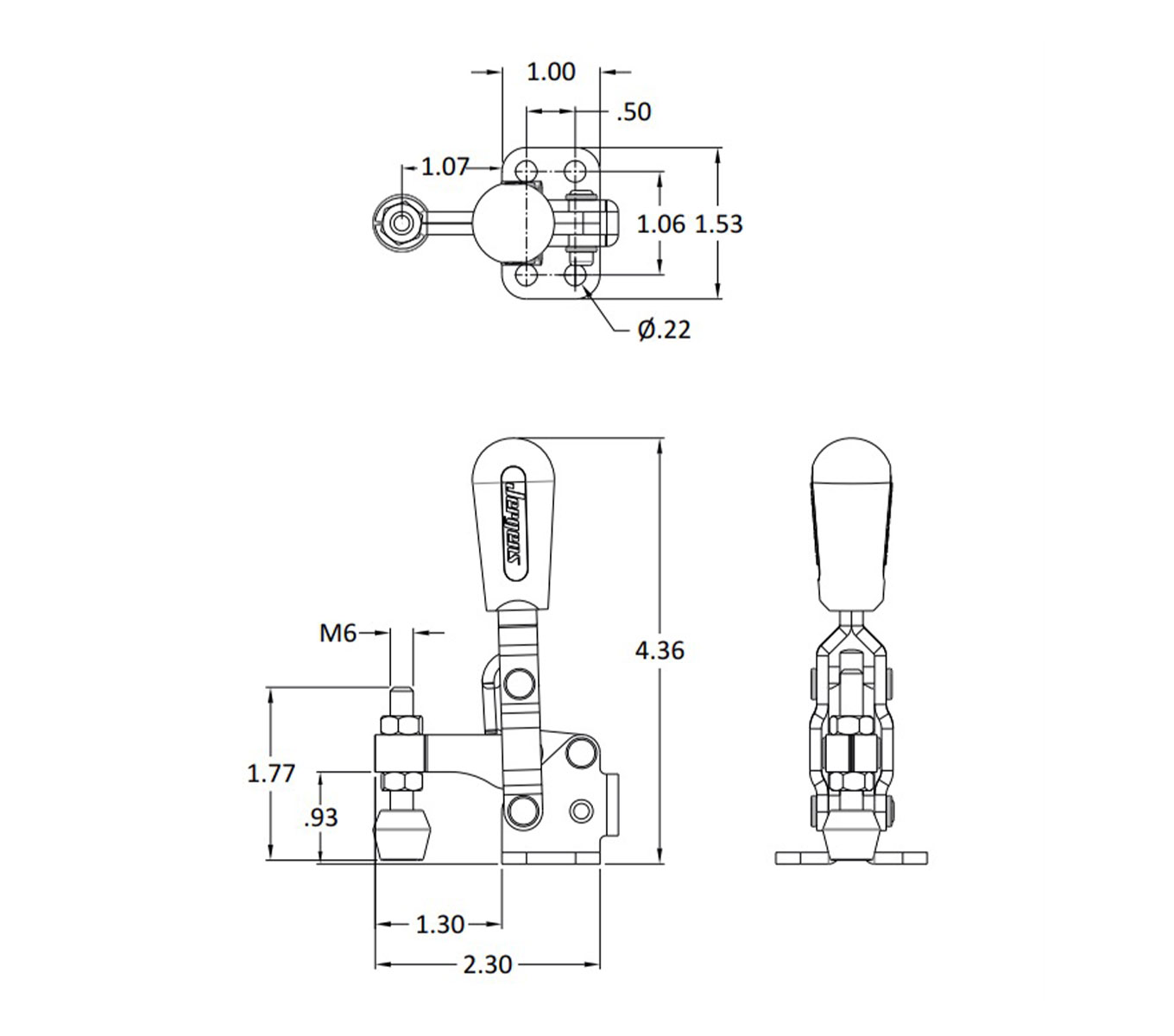

140 LB CAP Vertical Toggle Clamp with Flanged Base & Solid Arm
Jergens Vertical Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. The clamp exhibits a minimum of 90° opening angle giving full clearance for loading and unloading the workpiece.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Zinc Plated
-
Handle: Molded
-
Holding capacity up to 140 lbs
-
Vertical handles are designed with a minimum of 90° opening angle
-
The solid arm allows for fixed spindle location
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
140 LB CAP Vertical Toggle Clamp with Flanged Base & Solid Arm

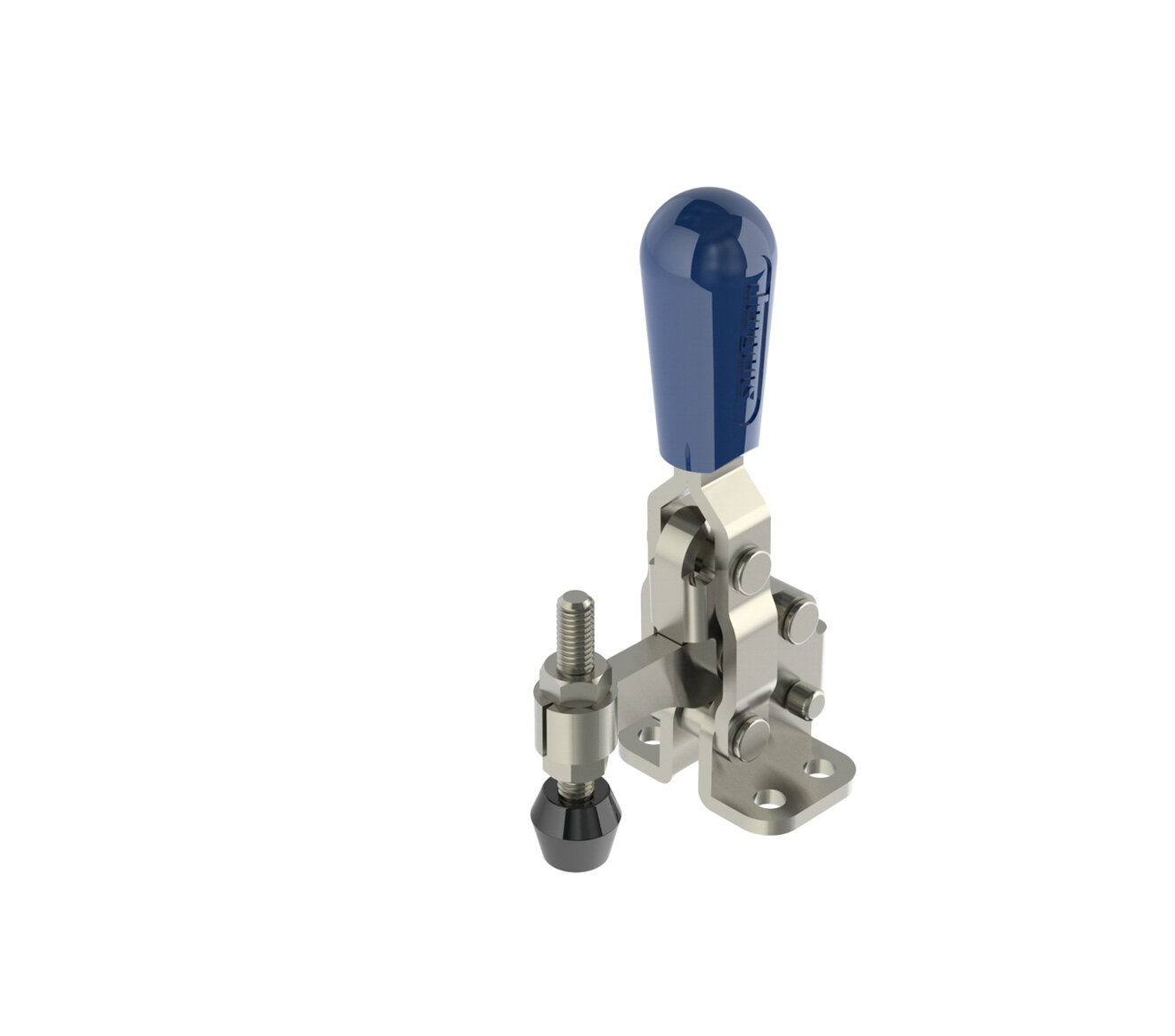

![Vertical Toggle Clamp Vertical Toggle Clamp](/Products/70002.jpg)
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) | |
---|---|---|---|---|---|---|---|---|---|
70002 |
|
Inch | Flanged | Solid | 64° | 104° | 140 | 0.33 |
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kg) | |
---|---|---|---|---|---|---|---|---|---|
70002 |
|
Metric | Flanged | Solid | 64° | 104° | 0.62 | 0.15 |
