337 LB CAP Vertical Toggle Clamp with Flanged Base & Adjustable Long U-Bar
Jergens Vertical Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. The clamp exhibits a minimum of 90° opening angle giving full clearance for loading and unloading the workpiece.
Features, Benefits, & Product Specifications:
- Body Material & Finish: Low Carbon Steel, Zinc Plated
- Handle: Molded
- Holding capacity up to 337 lbs
- Vertical handles are designed with a minimum of 90° opening angle
- Adjustable U-Bar enables the user to adjust the clamp for various workpiece sizes
Note(s):
- "Holding Capacity" measurement applies to the U-Bar position closest to the handle.
- ⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
337 LB CAP Vertical Toggle Clamp with Flanged Base & Adjustable Long U-Bar

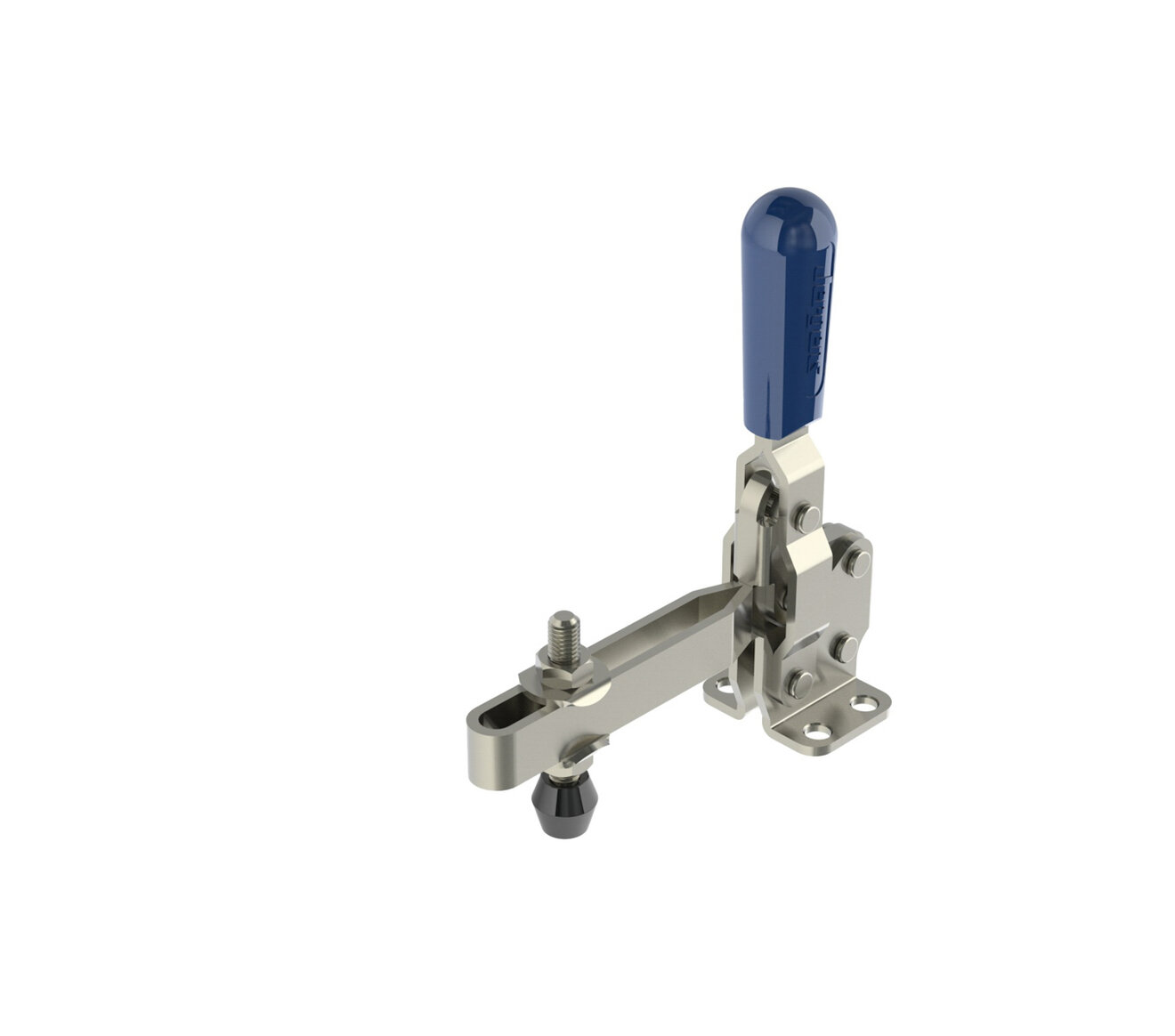

![Vertical Toggle Clamp with Flanged Base & Adjustable Long U-Bar Vertical Toggle Clamp with Flanged Base & Adjustable Long U-Bar](/Products/70006.jpg)

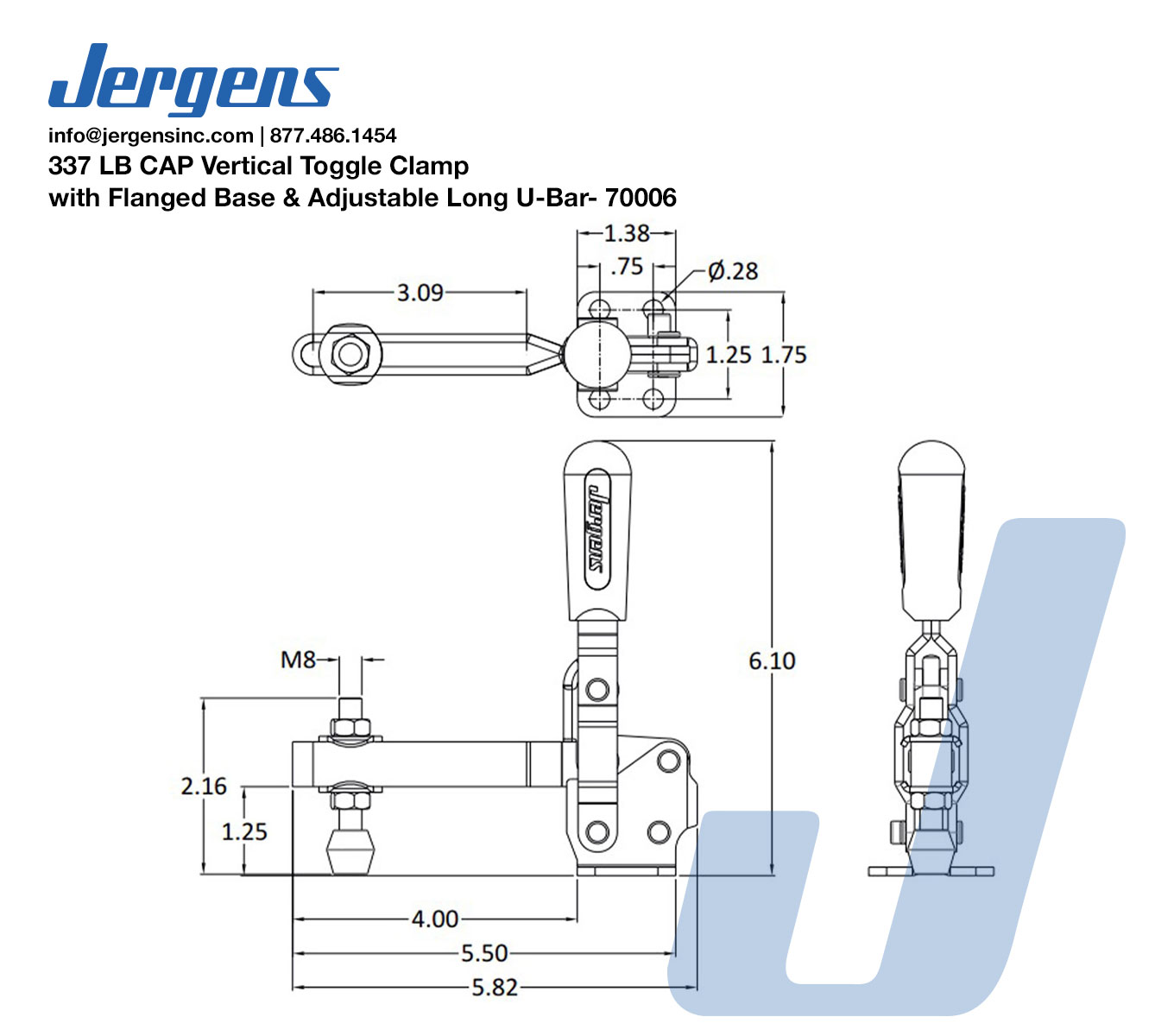

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) | |
---|---|---|---|---|---|---|---|---|---|
70006 |
|
Inch | Flanged | Adjustable Long U-Bar | 62° | 115° | 337 | 0.75 |
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kg) | |
---|---|---|---|---|---|---|---|---|---|
70006 |
|
Metric | Flanged | Adjustable Long U-Bar | 62° | 115° | 1.50 | 0.34 |
