382 LB CAP Vertical Toggle Clamp with Dual Flanged Base & Adjustable U-Bar
Jergens Vertical Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. The clamp exhibits a minimum of 90° opening angle giving full clearance for loading and unloading the workpiece.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Zinc Plated
-
Handle: Molded
-
Holding capacity up to 382 lbs
-
Vertical handles are designed with a minimum of 90° opening angle
- Dual flanged base allows for mounting to (2) planes and requires less space for the clamping action
-
Adjustable U-Bar enables the user to adjust the clamp for various workpiece sizes
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
382 LB CAP Vertical Toggle Clamp with Dual Flanged Base & Adjustable U-Bar
![Vertical Toggle Clamp Vertical Toggle Clamp](/Products/70017.jpg)

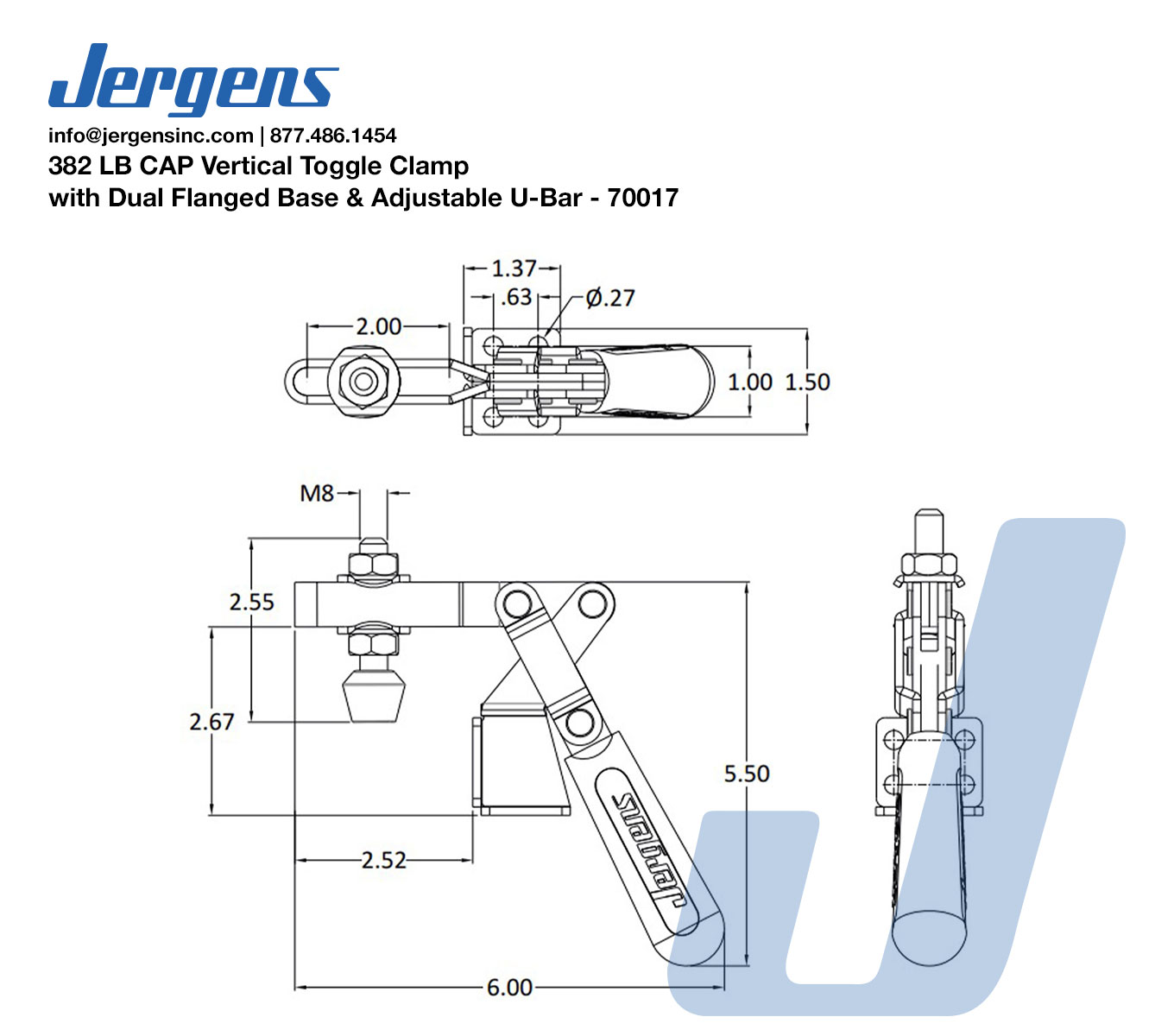

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) | |
---|---|---|---|---|---|---|---|---|---|
70017 |
|
Inch | Flanged | Adjustable U-Bar | 60° | 185° | 382 | 0.80 |
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kg) | |
---|---|---|---|---|---|---|---|---|---|
70017 |
|
Metric | Flanged | Adjustable U-Bar | 60° | 185° | 1.70 | 0.36 |
