382 LB CAP Vertical Toggle Clamps with Additional Locking Mechanism
Jergens Vertical Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. The clamp exhibits a minimum of 90° opening angle giving full clearance for loading and unloading of the workpiece.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Zinc Plated
-
Handle: Molded
-
Holding capacity up to 382 lbs
-
Vertical handles are designed with minimum of 90° opening angle
-
Adjustable U-Bar enables the user to adjust the clamp for various workpiece sizes
-
Additional locking mechanism ensures that the clamp remains locked in any condition
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

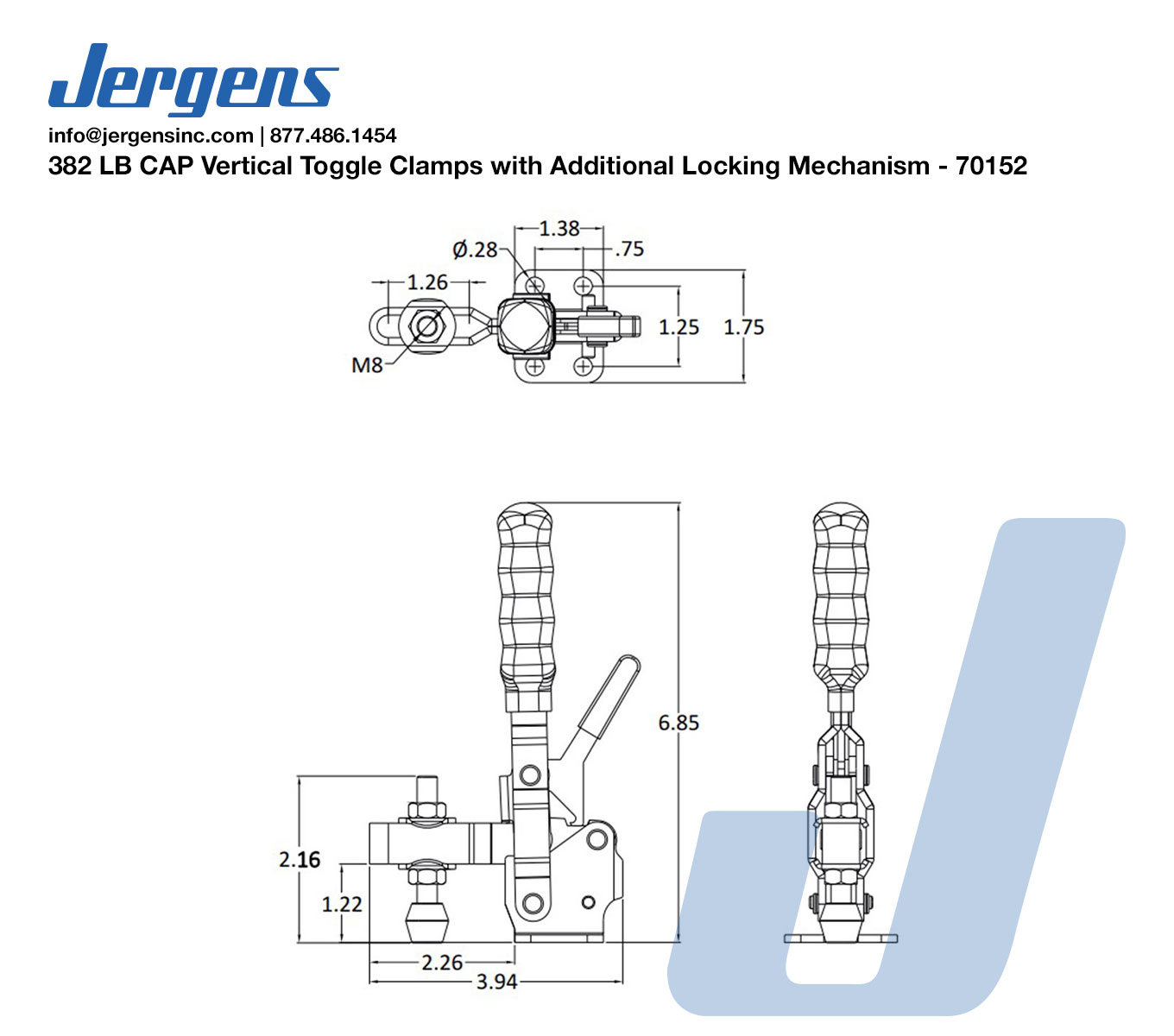

70152_LineArt
382 LB CAP Vertical Toggle Clamps with Additional Locking Mechanism
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| 70152 | Inch | Flanged | Adjustable U-Bar | 62° | 115° | 382 | 0.66 |
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| 70152 | Metric | Flanged | Adjustable U-Bar | 62° | 115° | 1.70 | 0.30 |
