Adjustable Clamp Rests
Jergens Adjustable Clamp Rests are used as rear supports for our Strap Clamp Assemblies.
Features, Benefits, & Product Specifications:
-
Material: 303 Stainless Steel
Adjustable Clamp Rests

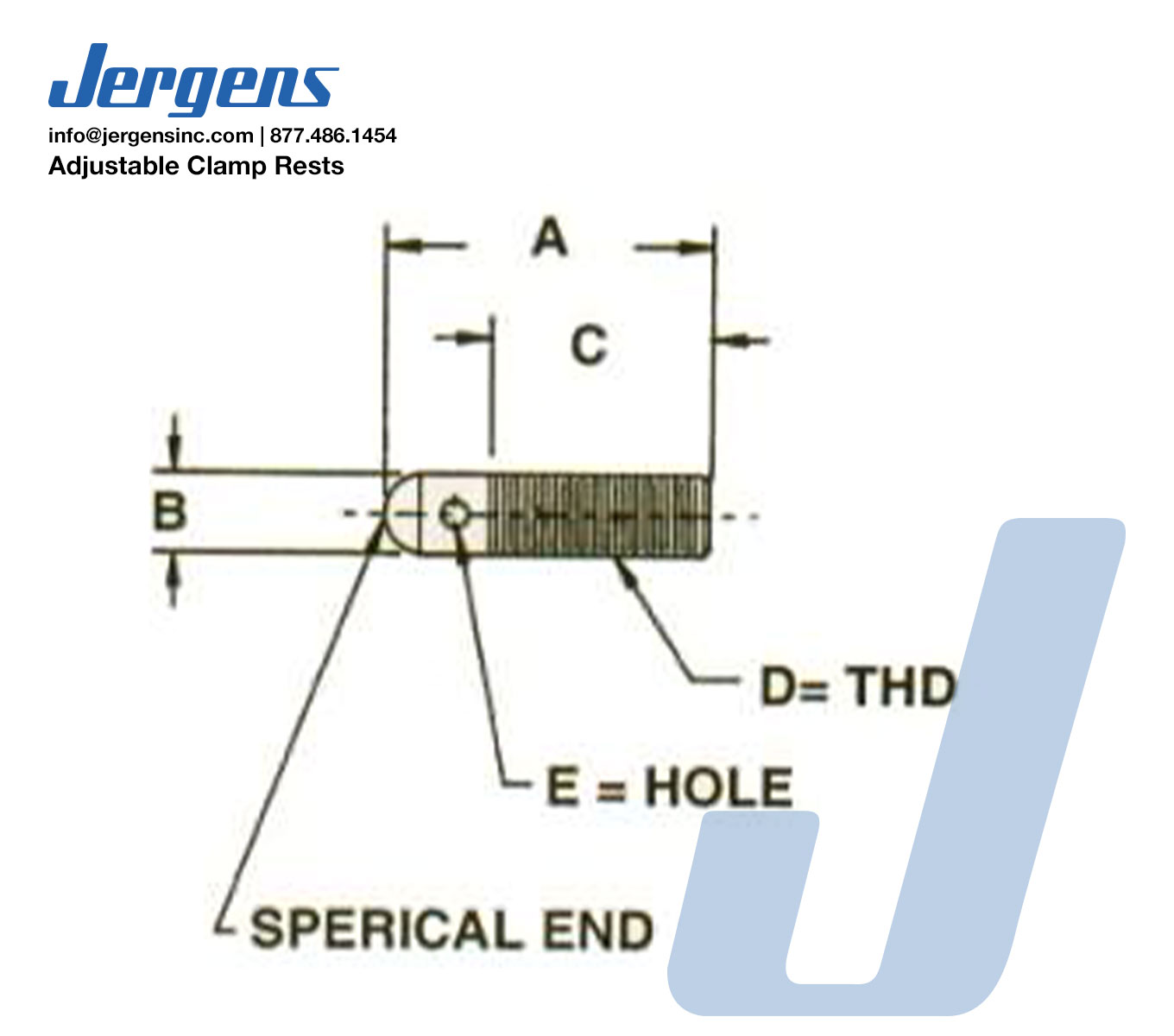

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D | E (In) |
|---|---|---|---|---|---|---|---|
| 12231 |
|
Inch | 3/4 | 0.190 | 1/2 | 10-32 | 1/16 |
| 12232 |
|
Inch | 1 1/4 | 0.190 | 1 | 10-2 | 1/16 |
| 12233 |
|
Inch | 1 | 1/4 | 11/16 | 1/4-20 | 5/64 |
| 12234 |
|
Inch | 1 1/2 | 1/4 | 1 3/16 | 1/4-20 | 5/64 |
| 12235 |
|
Inch | 1 3/8 | 5/16 | 1 1/8 | 5/16-18 | 3/32 |
| 12236 |
|
Inch | 1 7/8 | 5/16 | 1 5/8 | 5/16-18 | 3/32 |
| 12237 |
|
Inch | 1 5/8 | 3/8 | 1 3/8 | 3/8-16 | 1/8 |
| 12238 |
|
Inch | 2 1/8 | 3/8 | 1 7/8 | 3/8-16 | 1/8 |
