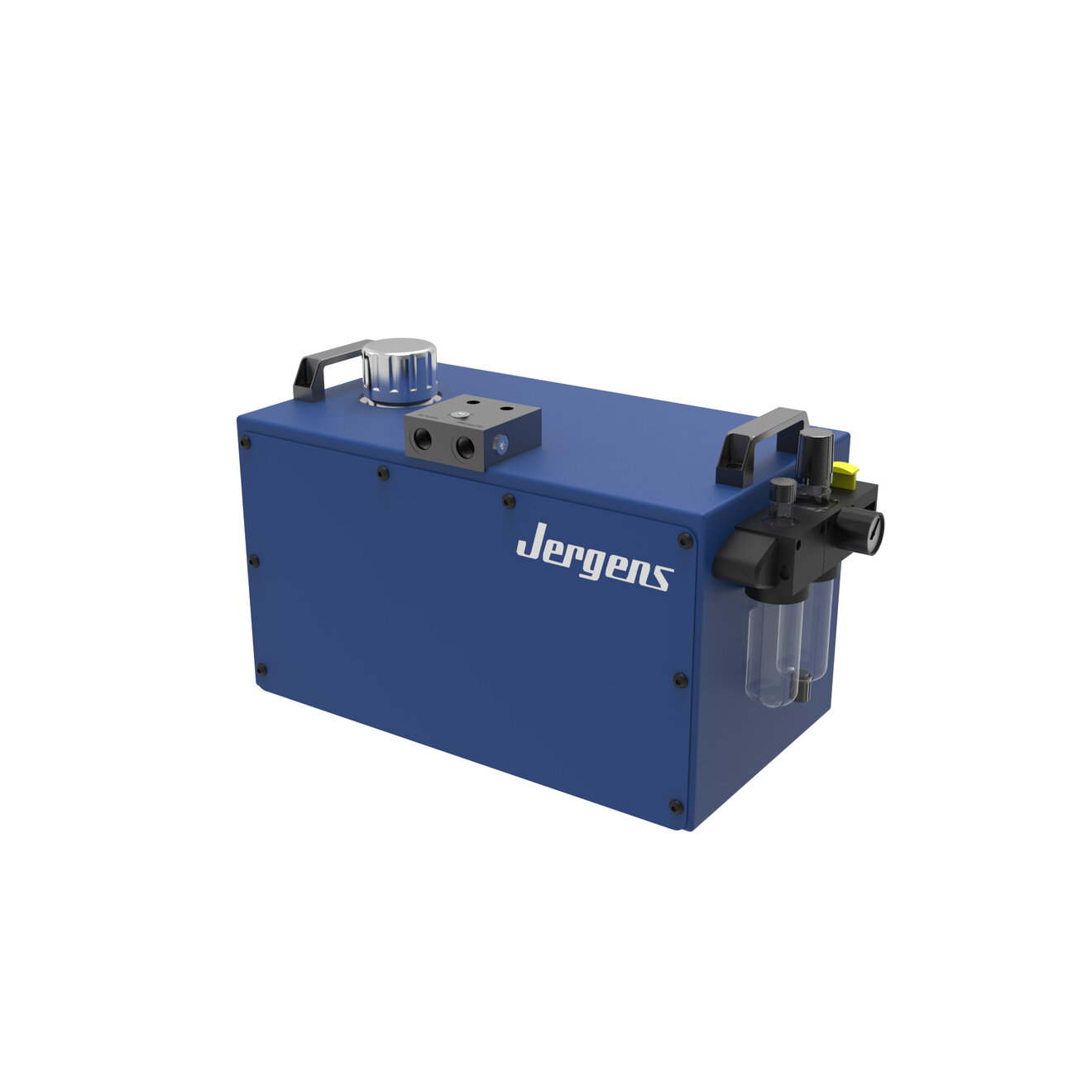

Breadbox Air Powered Hydraulic Pumps
Jergens Air Powered Hydraulic Breadbox Pumps convert standard and accessible low-pressure shop air to hydraulic pressure up to 5000 psi. These pumps offer large reservoir capacities and allow independent control of multiple workstations. They are designed to provide high-volume output throughout the pump’s entire pressure range.
Features, Benefits, & Product Specifications:
-
Available in 20:1 and 50:1 boost ratios
Note(s):
A ten cubic inch accumulator (Part No. 62601) is available to increase the clamping speed if needed.
Breadbox Air Powered Hydraulic Pumps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Reservoir Capacity (cu. in.) | Minimum Input (psi) | Maximum Input (psi) | Boost Ratio | Maximum Output (psi) | Free Flow @100psi (cu in/min) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 61761 | Inch | 440 | 125 | 40 | 20:1 | 2500 | 700 | 100 | |
| 61762 | Inch | 440 | 100 | 40 | 50:1 | 5000 | 300 | 100 |
