Fine Pitch Steel Heel Straps

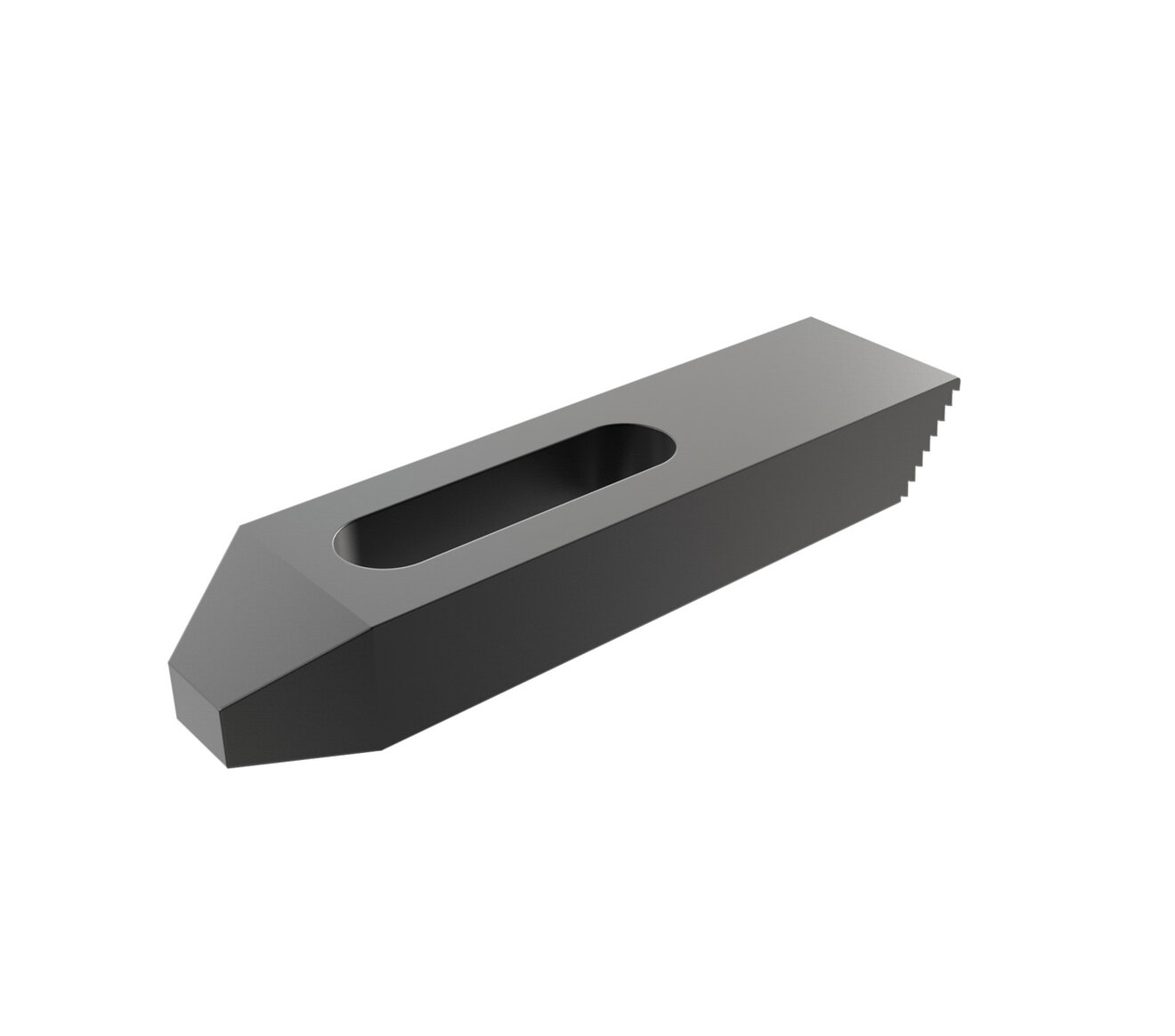

The step teeth of Jergens Fine Pitch Heel Straps match our Steel Step Blocks. These straps facilitate easier height adjustment on set-ups.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened Rockwell 30N 50-54
Fine Pitch Steel Heel Straps
Select a part number for CAD drawings, price and stock availability.

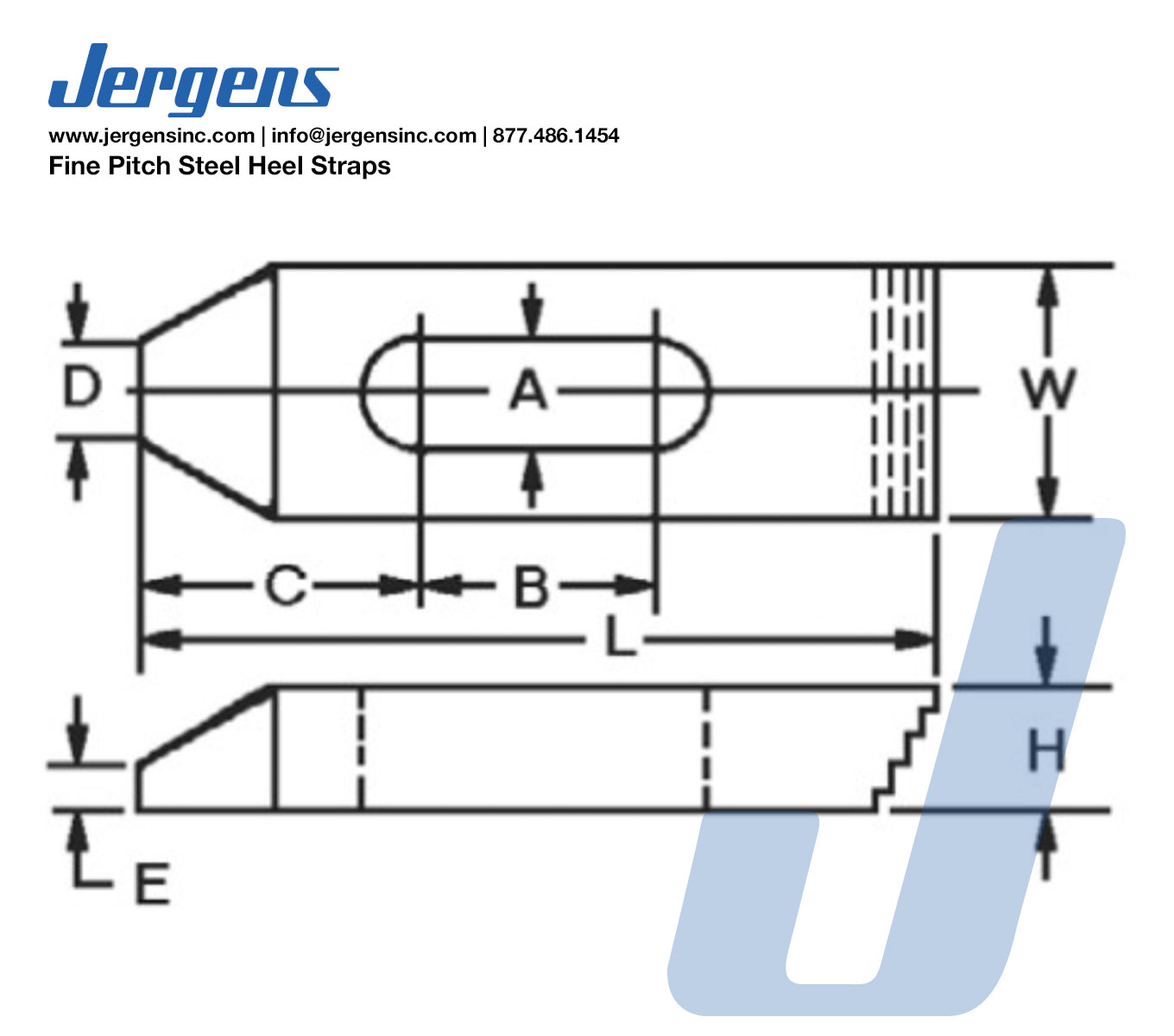

| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | H (In) | L (In) | W (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46834 |
|
Inch | 1/2 | 9/16 | 1/2 | 1 1/16 | 1/2 | 1/4 | 1/2 | 2 1/2 | 1 1/8 | 0.46 |
| 46835 |
|
Inch | 1/2 | 9/16 | 1 1/4 | 1 3/16 | 1/2 | 1/4 | 3/4 | 4 | 1 1/4 | 0.65 |
| 46836 |
|
Inch | 1/2 | 9/16 | 2 | 1 5/16 | 1/2 | 1/4 | 7/8 | 6 | 1 1/4 | 0.95 |
| 46837 |
|
Inch | 5/8 | 11/16 | 1/2 | 1 3/16 | 5/8 | 1/4 | 5/8 | 2 1/2 | 1 1/4 | 0.66 |
| 46838 |
|
Inch | 5/8 | 11/16 | 1 1/4 | 1 3/16 | 5/8 | 3/8 | 3/4 | 4 | 1 1/2 | 0.93 |
| 46839 |
|
Inch | 5/8 | 11/16 | 2 | 1 5/16 | 5/8 | 3/8 | 7/8 | 6 | 1 1/2 | 1.36 |
| 46840 |
|
Inch | 3/4 | 13/16 | 3/4 | 1 5/16 | 5/8 | 3/8 | 3/4 | 4 | 1 1/2 | 1.39 |
| 46841 |
|
Inch | 3/4 | 13/16 | 1 1/2 | 1 1/2 | 5/8 | 3/8 | 1 | 6 | 1 5/8 | 1.94 |
| 46842 |
|
Inch | 3/4 | 13/16 | 2 1/4 | 1 5/8 | 5/8 | 3/8 | 1 1/8 | 8 | 1 3/4 | 2.48 |
