HDP1300 Heavy Duty Long Handle Push-Pull Clamp

Jergens Heavy Duty Long Handle Push-Pull Clamps are of exceptionally robust construction featuring cast and machined handles and bases. The clamps are designed with a low plunger height and with a mechanism guarded within the base to avoid finger traps. The plungers feature a precision ground diameter that runs in a close-toleranced hole in the base casting. All axles run in either the cast iron of the handle or in the close-toleranced holes of hardened parts.
Features, Benefits, & Product Specifications:
  • Base Material: Machined Cast Iron
  • Handle Material & Finish: Machined Cast Iron, PVC Grip
  • Plunger Material: Steel
  • Axles Material: Hardened Steel
  • Handles of normal length for clamping
  • Plunger locks at both extended & retracted ends of the stroke
  • Supplied complete with steel setscrew & nut
Note(s):

Documents

HDP1300 Heavy Duty Long Handle Push-Pull Clamp

HDP1300 Heavy Duty Long Handle Push-Pull Clamp
  • HDP1300 Heavy Duty Long Handle Push-Pull Clamp

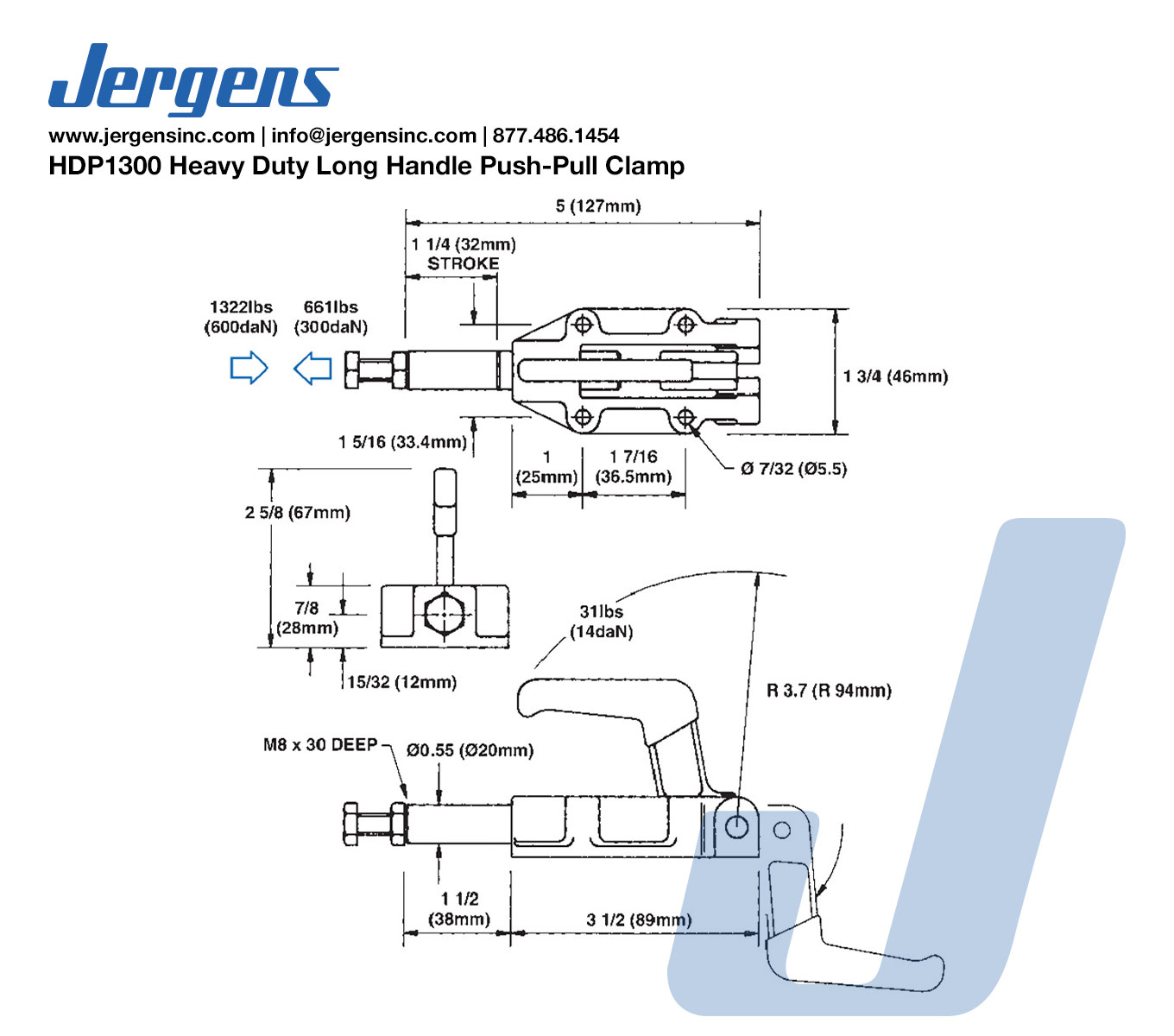

  • Line Art 72201 HD PUSH-PULL CLAMP, HDP1300

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Model Nom. Holding Force (lbs) Plunger Base Weight (lbs)
72201 icon_cad Inch HDP1300 1,322 Locks Body Mounting 1
