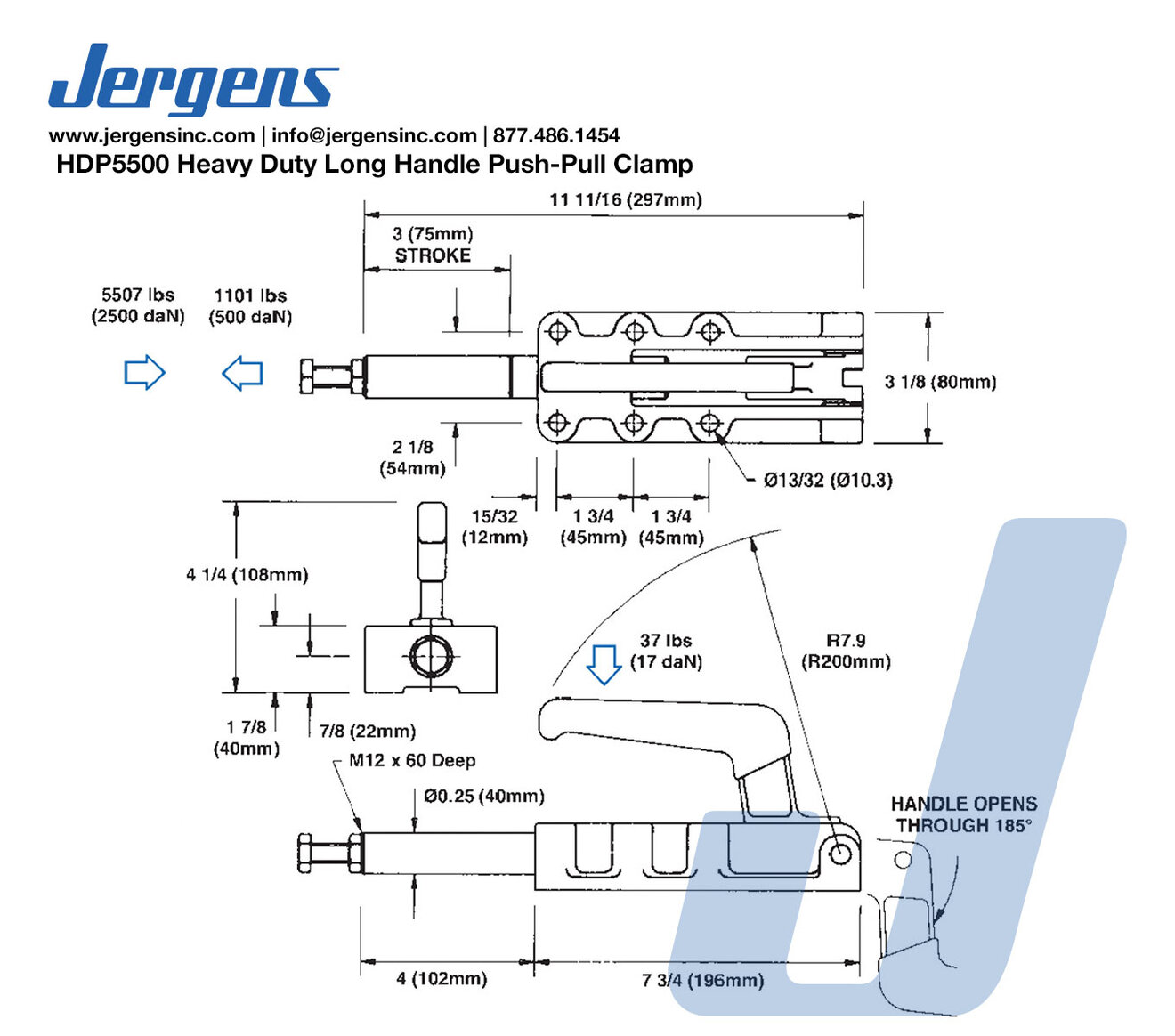

HDP5500 Heavy Duty Long Handle Push-Pull Clamp
Jergens Heavy Duty Long Handle Push-Pull Clamps are of exceptionally robust construction featuring cast and machined handles and bases. The clamps are designed with a low plunger height and with a mechanism guarded within the base to avoid finger traps. The plungers feature a precision ground diameter that runs in a close-toleranced hole in the base casting. All axles run in either the cast iron of the handle or in the close-toleranced holes of hardened parts.
Features, Benefits, & Product Specifications:
-
Base Material: Machined Cast Iron
-
Handle Material & Finish: Machined Cast Iron, PVC Grip
-
Plunger Material: Steel
-
Axles Material: Hardened Steel
-
Handles of normal length for clamping
-
Plunger locks at both extended & retracted ends of the stroke
-
Supplied complete with steel setscrew & nut
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Documents
HDP5500 Heavy Duty Long Handle Push-Pull Clamp
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Model | Nom. Holding Force (lbs) | Plunger | Base | Weight (lbs) |
---|---|---|---|---|---|---|---|
72203 | Inch | HDP5500 | 5,507 | Locks | Body Mounting | 8 |
