Large Work Supports
Jergens Work Supports differ from clamps and vises in that they do not actually exert force upon the workpiece. Rather, they are used to support the part being machined, offering resistance to any clamping forces acting counter to the direction of travel of the piston.
In a typical application, a large, thin casting is located on several tooling point pads for positioning. Work Supports will automatically adjust to support the delicate sections of the casting. When hydraulic pressure is applied, the floating pistons within the Work Support are locked in position and resist any downward movement exerted on the casting. After the casting is removed, the floating pistons return to their fully-raised position.
Features, Benefits, & Product Specifications:
-
Hydraulically-locked
-
Used to support the part being machined
-
Prevents damage to delicate workpieces
-
Increases precision by offering resistance to counterforces
-
Saves time by eliminating the need for manual adjustments
Documents

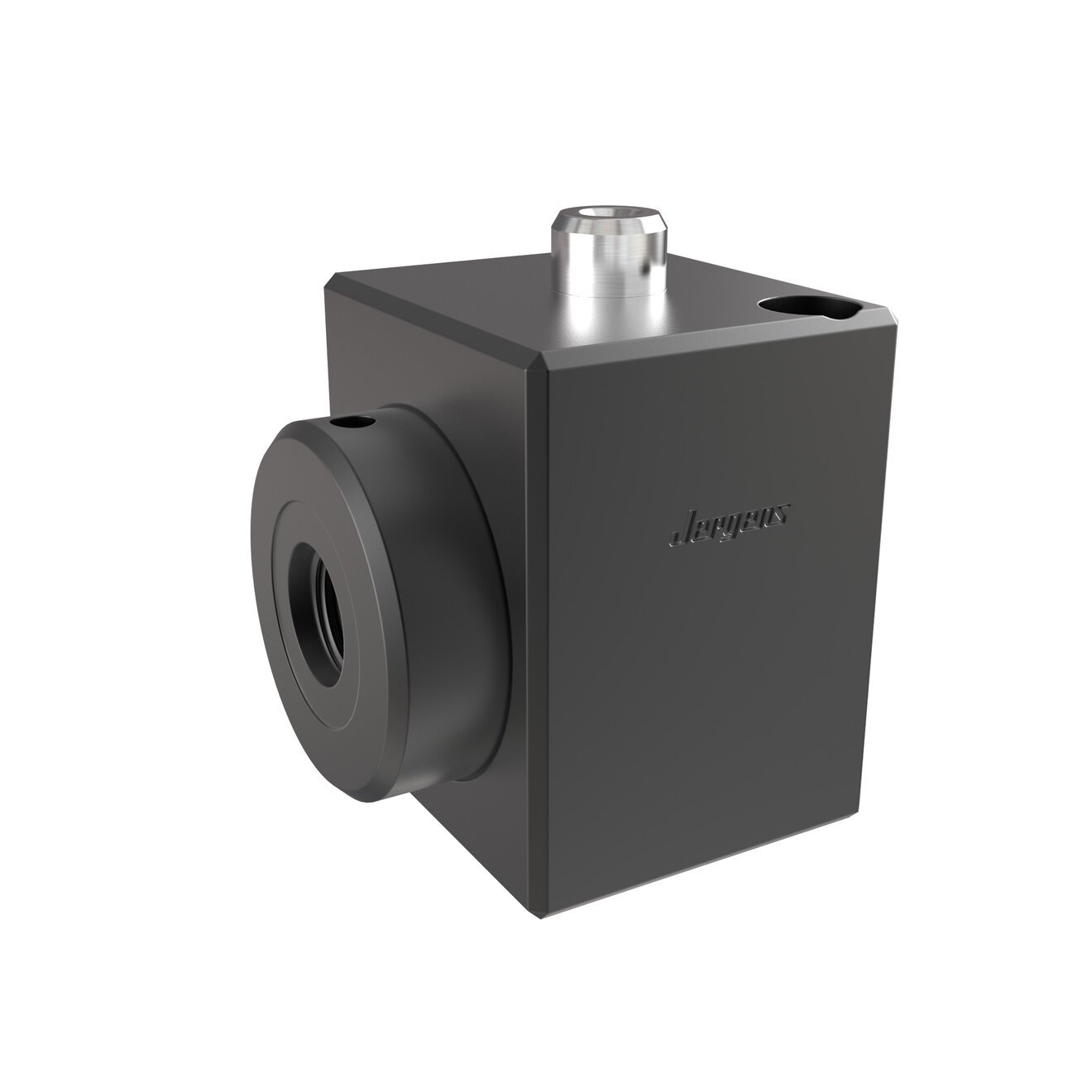

Large Work Supports
![Large Work Supports Large Work Supports](/Products/60512.jpg)
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (in) | E (in) | F (in) | Minimum G (in) | Maximum G (in) | H (in) | I (in) | J (in) | K (in) | L (in) | Operating Pressure (cu. in.) | Support to Pressure Ratio | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Support Capacity (lbs) | Plunger Spring Force +Start | Plunger Spring Force +Finish | Repair Kit Part Number | Weight (lbs) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60512 |
|
Inch | 3 9/16 | 1 3/8 | 2 3/4 | 0.990 | 5/8 | 3.69 | 4.15 | 4.65 | 4 3/16 | 2 3/32 | 3/8 | 3 | 1 7/8 | 0.04 | 1.6:1 | 500 | 3000 | 5000 | 2 | 7 | 62140 | 2 |
