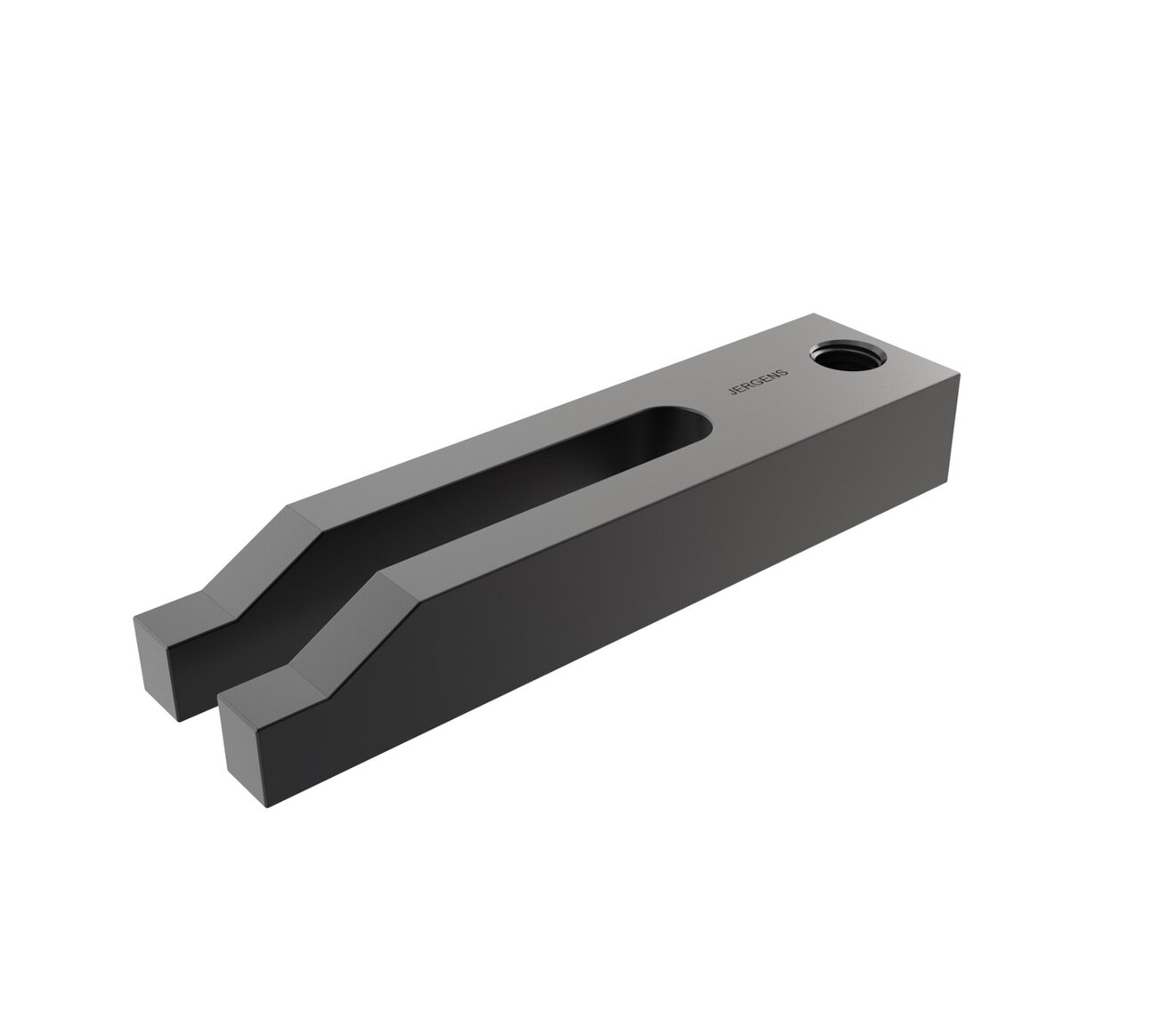

Long Slot U-Straps
Jergens Long Slot U-Straps are designed to be used with Adjustable Clamp Heels.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Thread: UNC-2B (Inch); 6h (Metric)
-
Heat Treat: Case Hardened Rockwell 30N Scale 59-69
Long Slot U-Straps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (In) | Thread Size | W (In) | H (In) | L (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47021 |
|
Inch | 1/2 | 17/32 | 2 1/2 | - | - | 1/2-13 | 1 1/2 | 3/4 | 4 | 1.18 |
| 47022 |
|
Inch | 1/2 | 17/32 | 3 1/2 | - | - | 1/2-13 | 1 1/2 | 3/4 | 6 | 1.92 |
| 47023 |
|
Inch | 5/8 | 21/32 | 2 7/16 | 5/8 | 3/4 | 5/8-11 | 1 3/4 | 7/8 | 4 | 1.52 |
| 47024 |
|
Inch | 5/8 | 21/32 | 3 15/16 | 5/8 | 3/4 | 5/8-11 | 1 3/4 | 7/8 | 7 | 2.73 |
| 47025 |
|
Inch | 3/4 | 25/32 | 3 1/2 | 5/8 | 3/4 | 3/4-10 | 2 | 1 | 6 | 2.96 |
| 47026 |
|
Inch | 3/4 | 25/32 | 5 | 5/8 | 3/4 | 3/4-10 | 2 | 1 1/4 | 8 | 3.99 |
| 47027 |
|
Inch | 1 | 1 1/16 | 5 1/2 | 5/8 | 3/4 | 1-8 | 2 1/2 | 1 1/2 | 10 | 8.12 |
