Micro™ Adjustable Clamps
Jergens Micro™ Adjustable Clamps decrease design and set-up times for modular fixtures, work cubes, and standard fixtures. Without changing hole locations, clamping ranges from 0.4724" (12mm) to 1.3780" (35mm) can be achieved.
Micro™ Adjustable Clamps are available with smooth or serrated faces, which make them ideal for clamping machined parts, castings, and rough-cut stock. The clamps work with cam action, always following the contour of the workpiece for maximum surface contact.
Features, Benefits, & Product Specifications:
-
Cam action
-
Low profile
-
Available in four sizes
-
Heat-treated and plated
-
Serrated or smooth edges
-
Adjustable clamps and stops
-
Includes cam screw
Note(s):
-

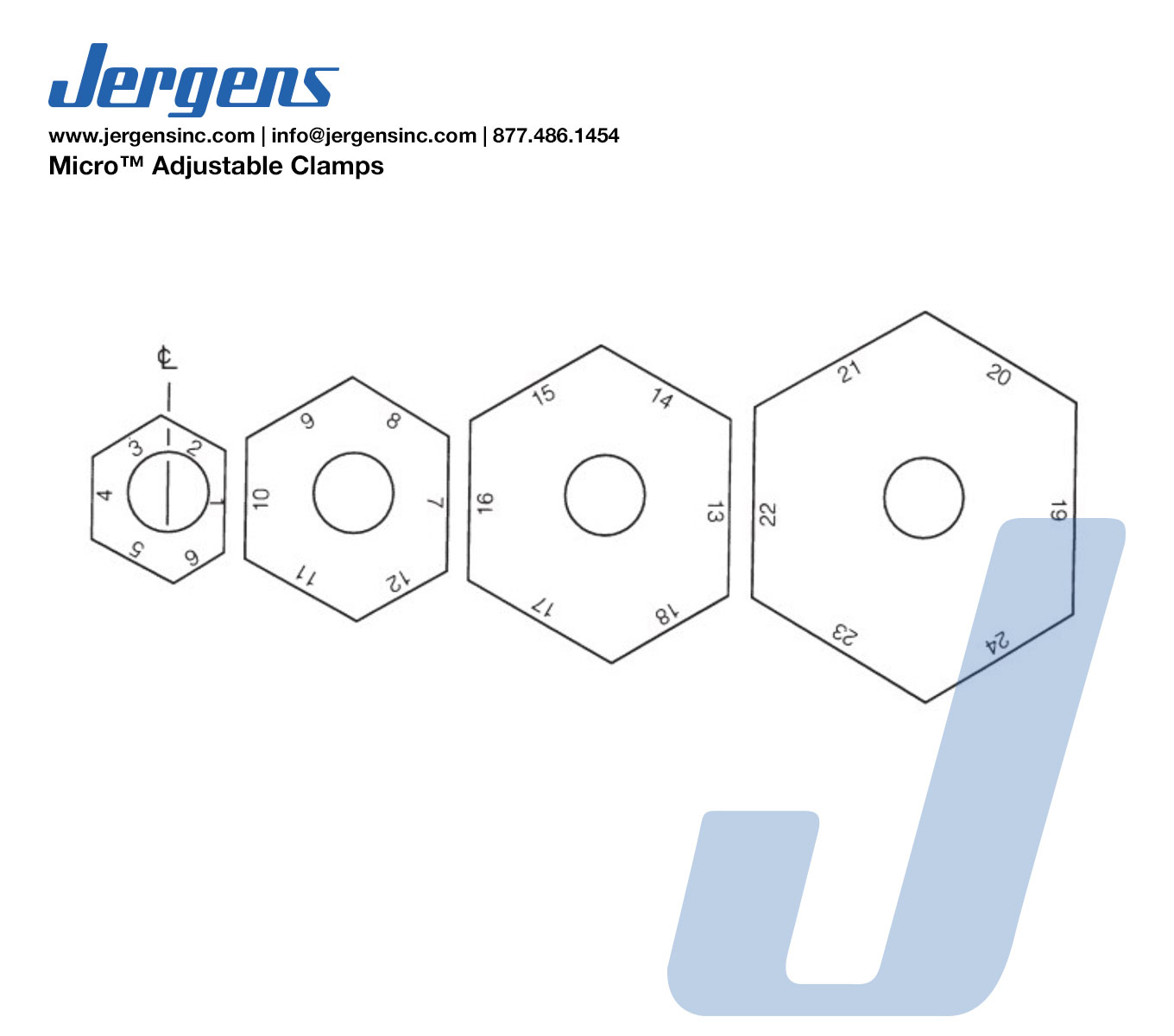

Measured from the centerline, each face of the Micro™ Adjustable Clamps increases 0.0394" (1mm) from the smallest to the largest face.
-
Locking Screws are 1/2-13 for inch sizes and 12M for metric sizes; the total distance of movement is 0.1" (2.5mm).
-
All Micro™ Adjustable Clamps include a cam screw.
-
Clamps are 0.394" (10mm) thick.
Micro™ Adjustable Clamps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Description | Cam Screw Part Number | Cam Screw Thread | Maximum Torque (ft/lbs) | Holding Force (lbs) |
|---|---|---|---|---|---|---|---|
| 68601 |
|
Inch | 1-6 smooth | 68202 | 1/2-13 | 65 | 4000 |
| 68602 |
|
Inch | 7-12 smooth | 68202 | 1/2-13 | 65 | 4000 |
| 68603 |
|
Inch | 13-18 smooth | 68202 | 1/2-13 | 65 | 4000 |
| 68604 |
|
Inch | 19-24 smooth | 68202 | 1/2-13 | 65 | 4000 |
| 68611 |
|
Inch | 1-6 serrated | 68202 | 1/2-13 | 65 | 4000 |
| 68612 |
|
Inch | 7-12 serrated | 68202 | 1/2-13 | 65 | 4000 |
| 68613 |
|
Inch | 13-18 serrated | 68202 | 1/2-13 | 65 | 4000 |
| 68614 |
|
Inch | 19-24 serrated | 68202 | 1/2-13 | 65 | 4000 |
| Part Number | CAD | Unit | Description | Cam Screw Part Number | Cam Screw Thread | Maximum Torque (Nm) | Holding Force (N) |
|---|---|---|---|---|---|---|---|
| 68651 |
|
Metric | 1-6 smooth | 68199 | M12 | 88 | 17800 |
| 68652 |
|
Metric | 7-12 smooth | 68199 | M12 | 88 | 17800 |
| 68653 |
|
Metric | 13-18 smooth | 68199 | M12 | 88 | 17800 |
| 68654 |
|
Metric | 19-24 smooth | 68199 | M12 | 88 | 17800 |
| 68661 |
|
Metric | 1-6 serrated | 68199 | M12 | 88 | 17800 |
| 68662 |
|
Metric | 7-12 serrated | 68199 | M12 | 88 | 17800 |
| 68663 |
|
Metric | 13-18 serrated | 68199 | M12 | 88 | 17800 |
| 68664 |
|
Metric | 19-24 serrated | 68199 | M12 | 88 | 17800 |
