Micro™ Toe T-Slot Clamps
Jergens Micro™ Toe T-Slot Clamps are a lot like our Micro™ Toe Clamps, only it is designed to be used in the T-slots of machine tables. They provide positive down force while maintaining a low profile. The hardened steel clamping element has both a smooth surface for machined workpieces and a serrated clamping surface for rougher work.
Note(s):
-

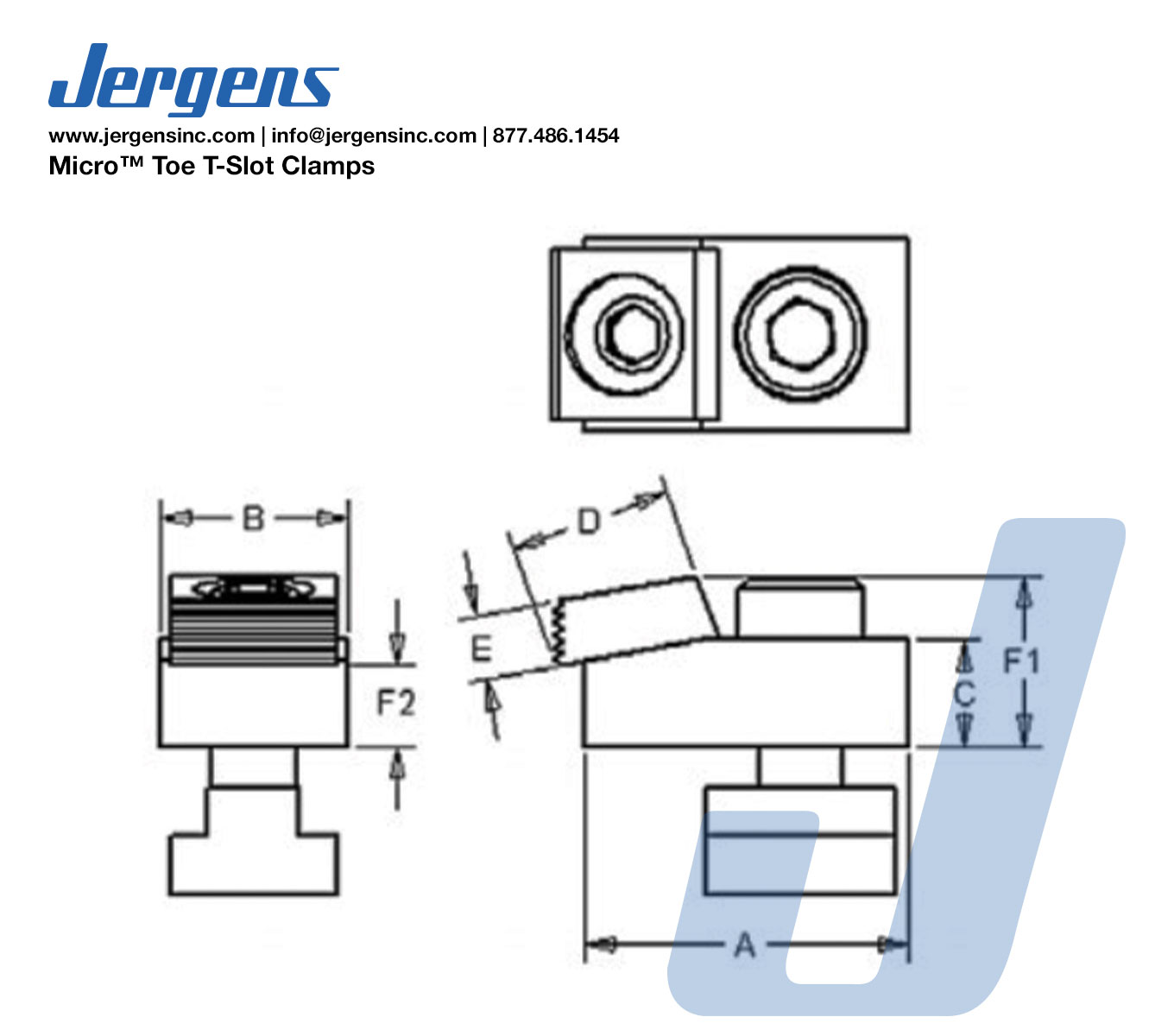

F1 Dimension = The distance from the top of the back of the washer to the bottom of the clamp body.
-
F2 Dimension = The distance from the top of the front of the washer to the bottom of the clamp body.
-
Torque mounting bolt to 110 lbf-ft (150 Nm).
Micro™ Toe T-Slot Clamps
![Micro™ Toe T-Slot Clamps Micro™ Toe T-Slot Clamps](/Products/68741.jpg)
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | T-Slot Size | A (In) | B (In) | C (In) | D (in) | E (in) | F1 (in) | F2 (in) | Maximum Torque (ft/lbs) | Holding Force (lbs) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
68741 |
|
Inch | 9/16 | 1.94 | 1.12 | 0.62 | 1.00 | 0.38 | 1.00 | 0.875 | 65 | 4000 | |
68742 |
|
Inch | 5/8 | 1.94 | 1.12 | 0.62 | 1.00 | 0.38 | 1.00 | 0.875 | 65 | 4000 | |
68744 |
|
Inch | 3/4 | 1.94 | 1.12 | 0.62 | 1.00 | 0.38 | 1.00 | 0.875 | 65 | 4000 | |
68750 |
|
Inch | 5/8 | 1.94 | 1.12 | 0.62 | 1.00 | 0.38 | 1.00 | 0.875 | 65 | 4000 |
