Miniature Radius Clamp Assemblies

A light-duty clamp assembly for clamping close to the edge. The latter allows free swinging and lateral adjustments for easier set-ups. Complete with radius strap, double jam nuts with spherical washers, finger tip, quick-action knurled thumb screw heel rest, stud, spring and washer.



Documents

Miniature Radius Clamp Assemblies

Miniature Radius Clamp Assemblies
  • Miniature Radius Clamp Assemblies

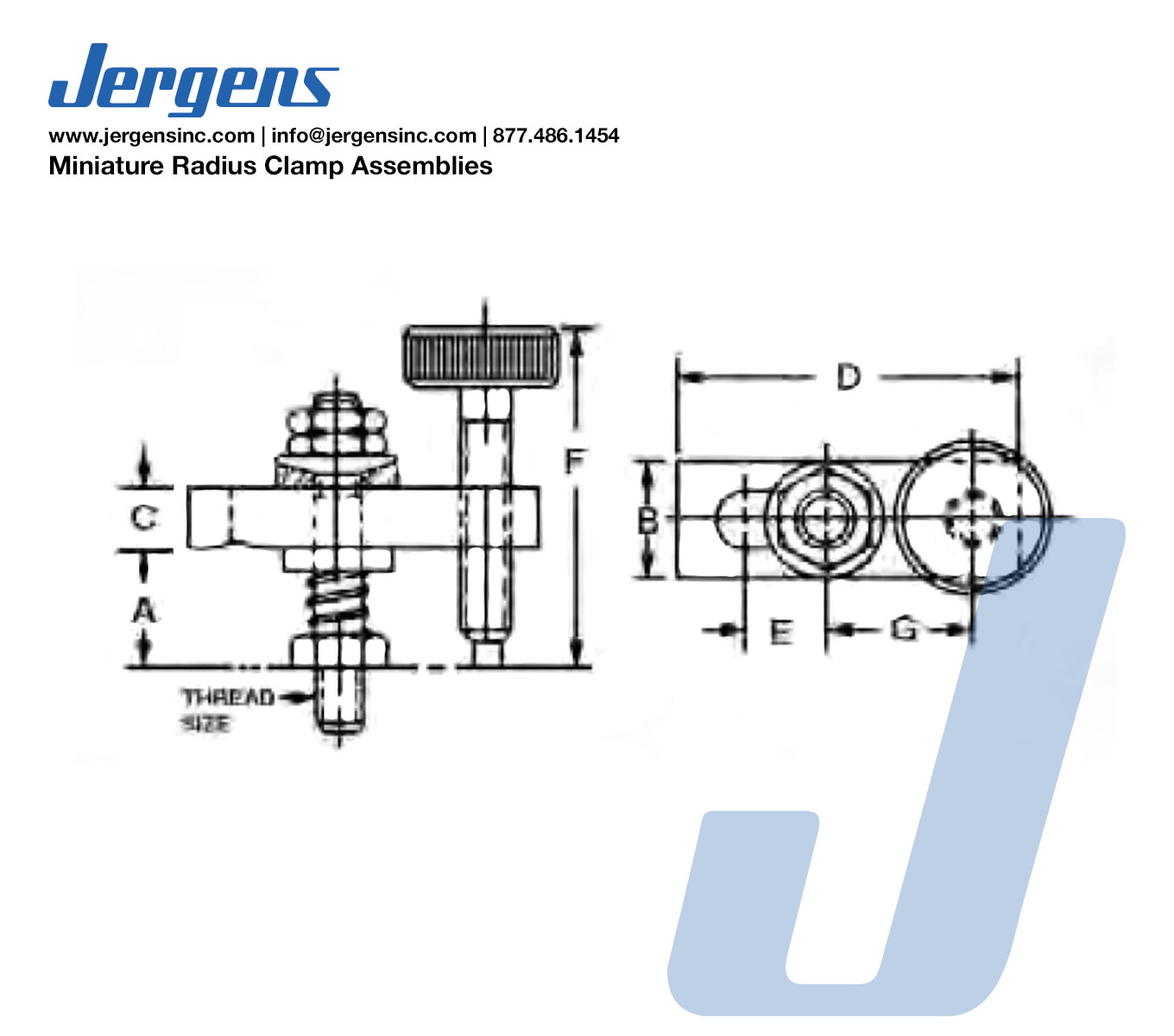

  • Line Art 13103 Miniature Radius Clamp Assemblies

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A (In) B (In) C (In) D (in) E (in) F (in) G (in) Thread Size Weight (lbs)
13101 icon_cad Inch 1/2 1/2 1/4 1 1/2 7/16 1 9/16 9/16 10-24 .20
13102 icon_cad Inch 1/2 1/2 1/4 1 3/4 9/16 1 9/16 11/16 10-24 .22
13103 icon_cad Inch 1/2 1/2 1/4 2 11/16 1 9/16 13/16 10.24 .24
