OK-Vise® Knife Edge Grip Jaw Clamps

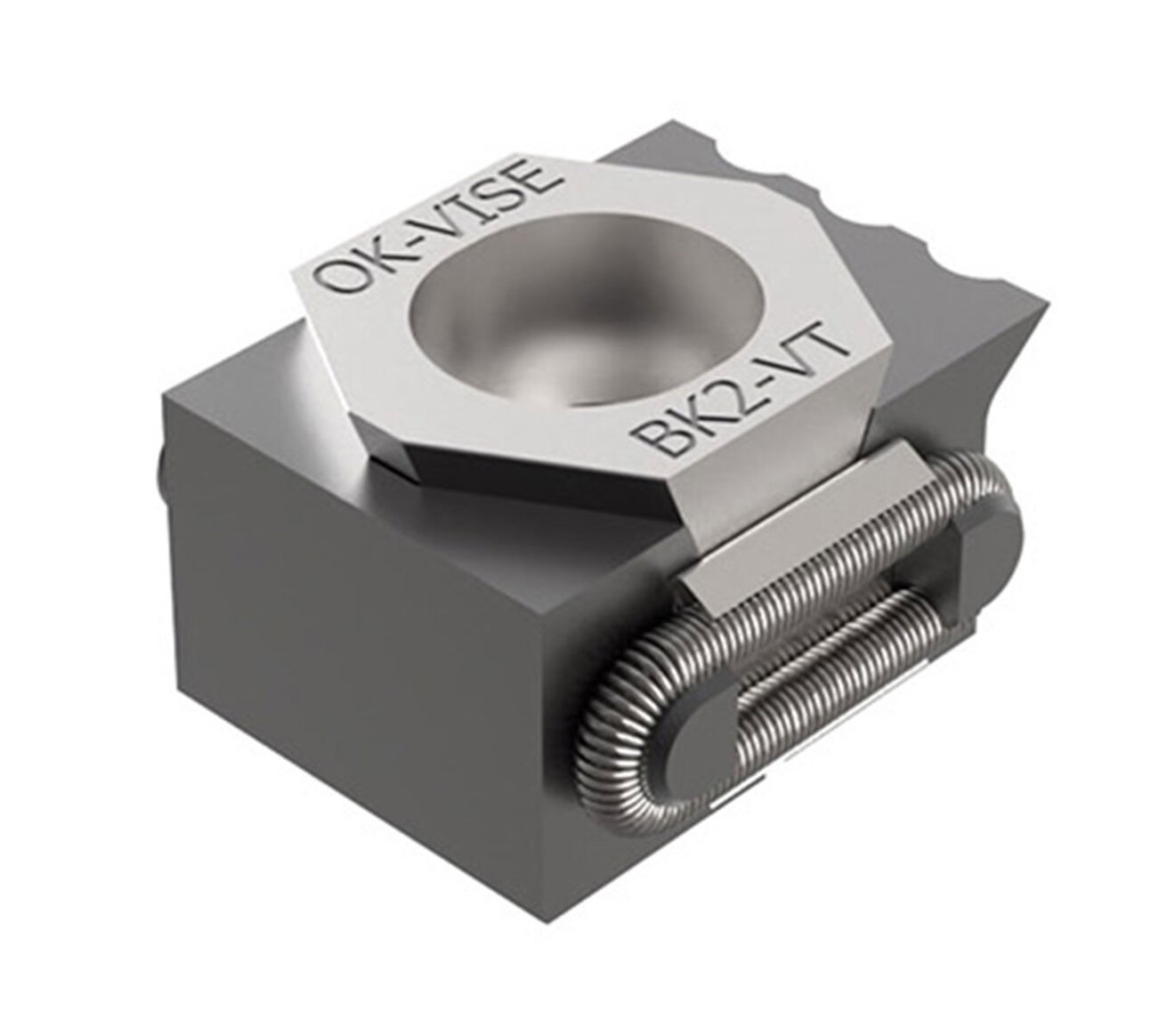

Jergens OK-Vise® Knife Edge Grip Jaw Clamps have (1) knife edge grip jaw and (1) smooth jaw. The knife edges penetrate into softer materials to prevent part movement.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
Part Number DK2-VTI-SG measurements are given in inches & pounds.

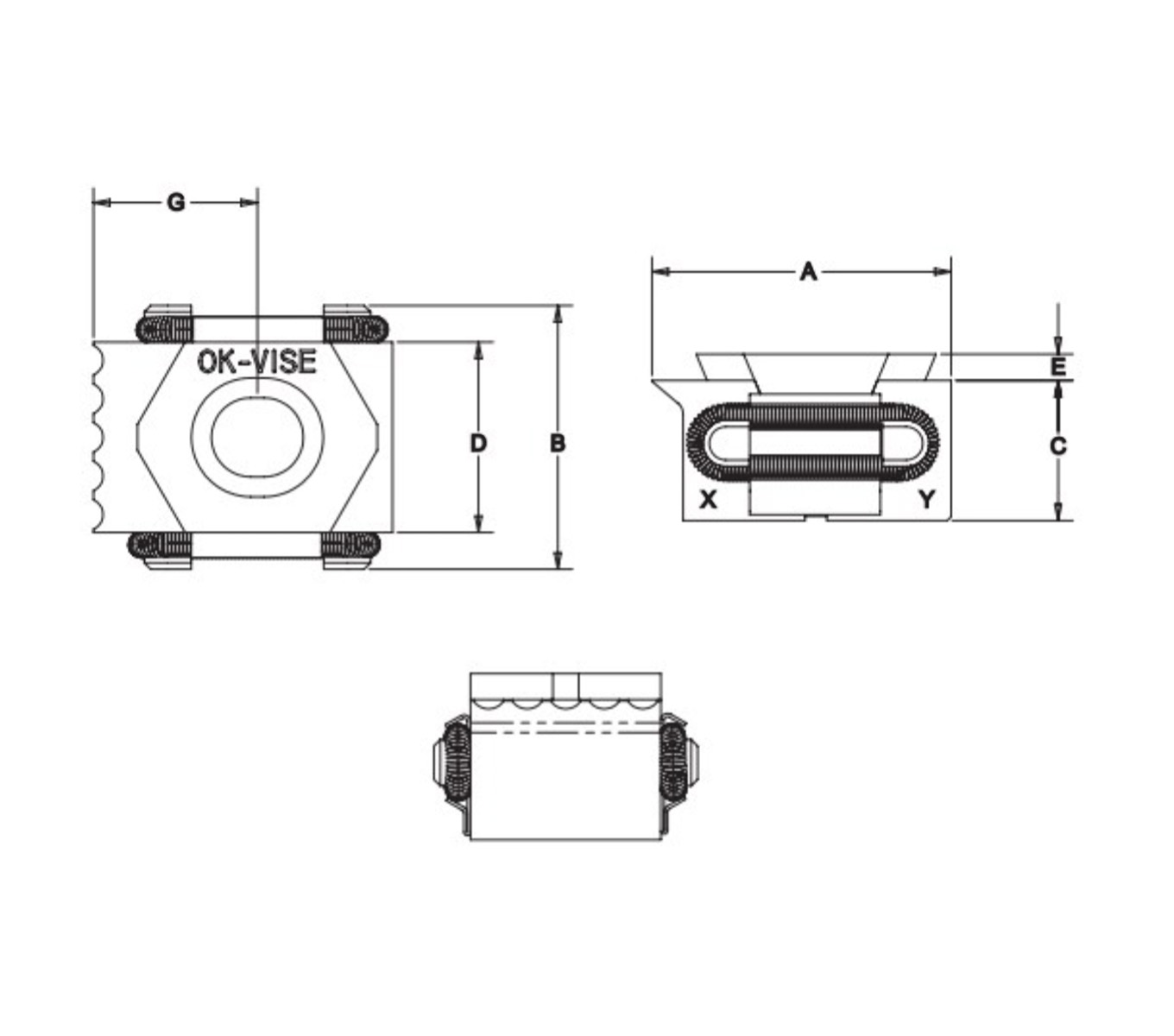

OK-Vise Knife Edge Grip Jaw Clamp_LineArt
OK-Vise® Knife Edge Grip Jaw Clamps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | G Minimum (mm) | G Optimum (mm) | G Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC X | Hardness of Jaws HRC Y | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK2-VT-SG | Metric | 30 | 32 | 34 | 16.3 | 17.4 | 18.5 | 29 | 15 | 21 | 2.5 | M8 X 20 | 22 | 43 | 38-42 | 48-52 | 0.064 | ||
| DK2-VT-SG | Metric | 46.6 | 49.9 | 53.3 | 25.5 | 27.2 | 28.9 | 41 | 22 | 30 | 4 | M12 X 30 | 55 | 145 | 38-42 | 48-52 | 0.212 |
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (in) | A Maximum (in) | G Minimum (in) | G Optimum (in) | G Maximum (in) | B (In) | C (In) | D (in) | E (in) | Socket Head Screw DIN 912 | Jaw Clamping Force (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC X | Hardness of Jaws HRC Y | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-VTI-SG | Inch | 1.83 | 1.96 | 2.10 | 1.00 | 1.07 | 1.14 | 1.61 | 0.86 | 1.18 | 0.15 | 1/2-13 X 1 1/4" | 12364 | 107 | 38-42 | 48-52 | 0.41 |
Related Products
-
OK-Vise® Two Knife Edge Grip Jaw Clamps
