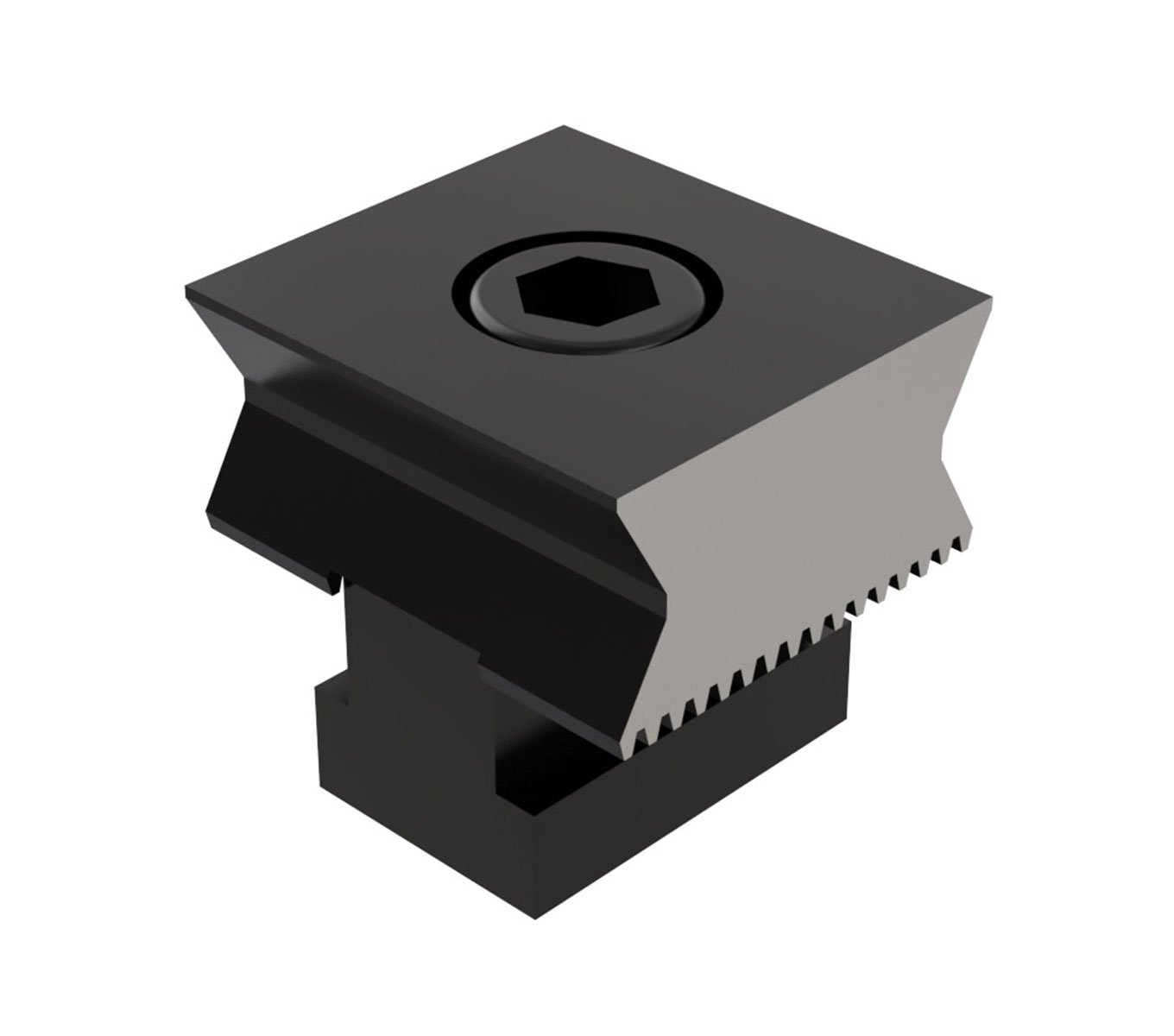

OK-Vise® RM Rail System Horizontal V-Stops

Jergens OK-Vise® RM Rail System Horizontal V-Stops feature a horizontal V-shape ideal for holding small round parts and bars.
Features, Benefits, & Product Specifications:
  • Serrated undersides mesh with Base Rails & resist high clamping forces
  • Adapts to a wide range of workpieces
  • Easily reposition on Base Rails to reduce setup time
  • T-nut and SHCS included
  • Recommend Installation Torque:
          - Minimum: 37 ft*lbs (50 Nm)
          - Maximum: 74 ft*lbs (100 Nm)


Documents

OK-Vise® RM Rail System Horizontal V-Stops

OK-Vise® RM Rail System Horizontal V-Stops
  • OK-Vise® RM Rail System Horizontal V-Stops

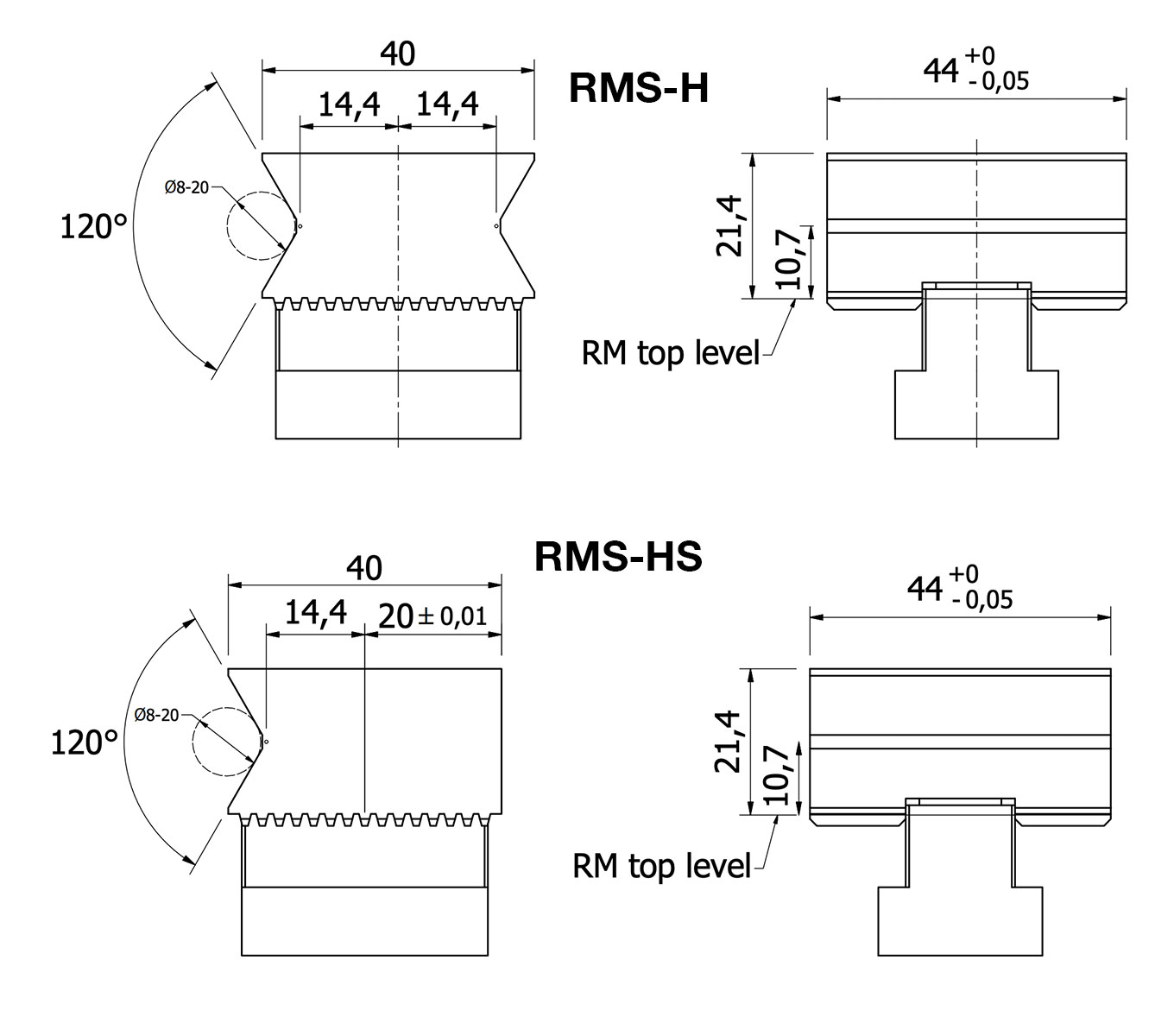

  • Line Art OK-Vise RM Rail System Horizontal V-Stops

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Description Weight
RMS-H icon_cad Inch Horizontal V on Both Faces 0.86 lbs
RMS-HS icon_cad Inch 1 Horizontal V Face, 1 Smooth Face 1.00 lbs
