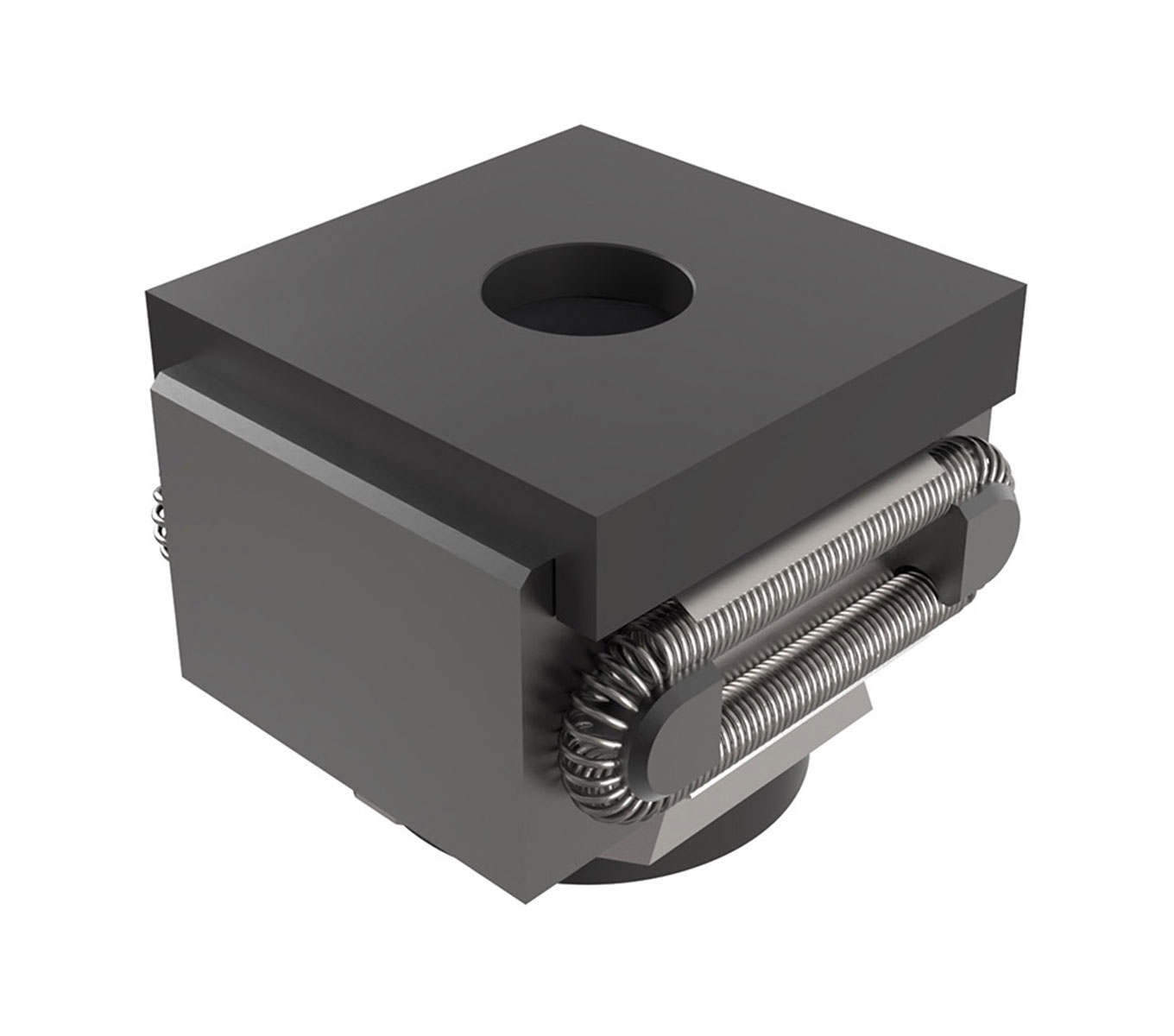

OK-Vise® Single-Wedge Pull-Down Serrated Clamps
Jergens OK-Vise® Pull-Down Clamps generate pull-down action, pressing workpieces down onto the fixture, as an alternative to applying sideways force to the jaw on the fixture base. Our OK-Vise® Single-Wedge Pull-Down Clamps are standard single-wedge clamps turned upside down combined with a pull-down set - a combination of a plate and a bushing.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
-
Part No. DK2-VTI-PD measurements are given in inches & pounds.
-
Bolt not included.
OK-Vise® Single-Wedge Pull-Down Serrated Clamps
Select a part number for CAD drawings, price and stock availability.

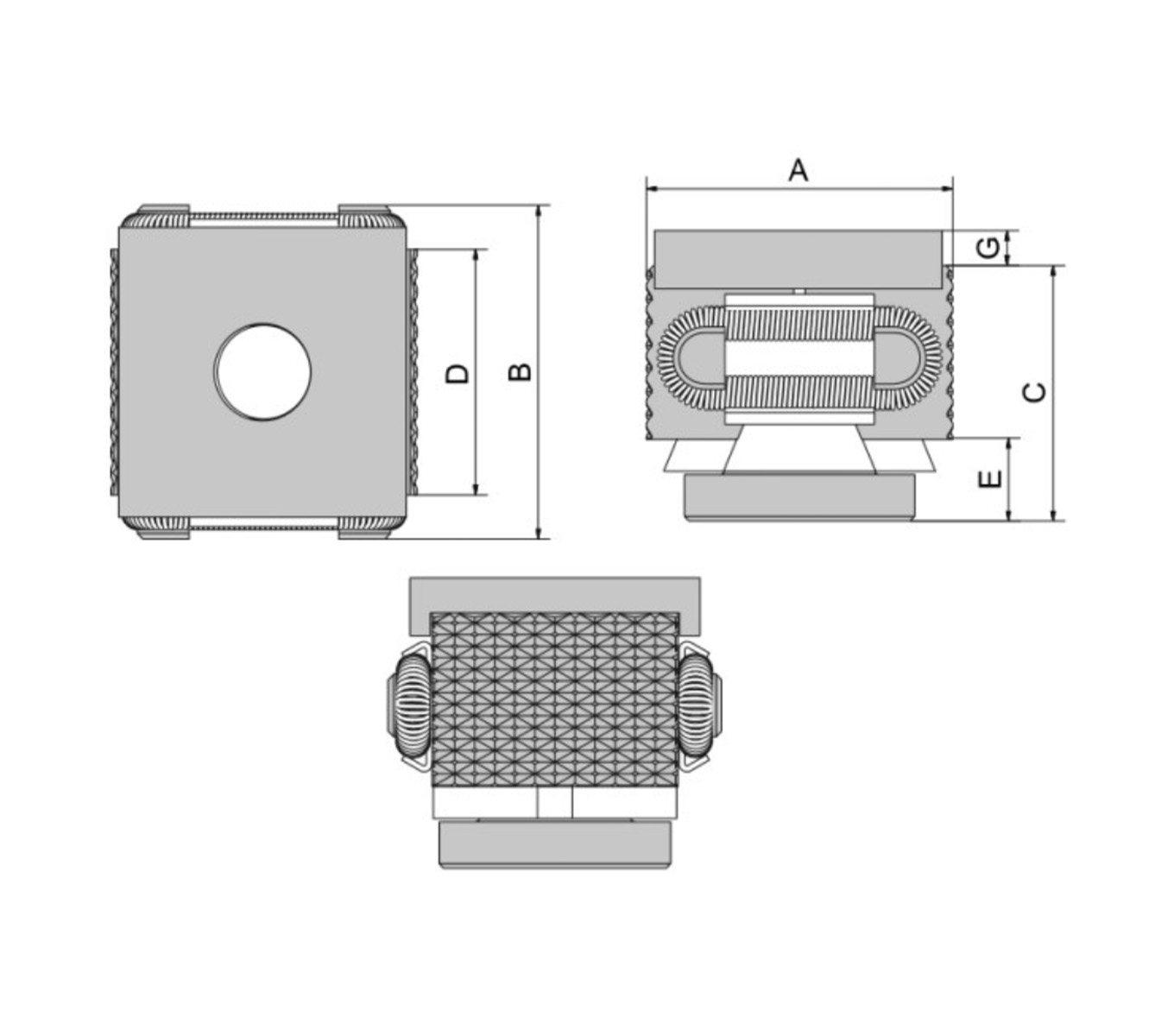

| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC X | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK2-VT-PD | Metric | 27 | 29 | 31 | 29 | 22 | 21 | 7 | 3 | M8 x 20 | 25 | 44 | 48-52 | 0.068 | |
| DK2-VT-PD | Metric | 42 | 45 | 49 | 41 | 32 | 30 | 10 | 4 | M12 x 30 | 65 | 145 | 48-52 | 0.270 | |
| FK2-VT-PD | Metric | 57 | 61 | 65 | 56 | 40.5 | 42 | 11.5 | 5 | M16 x 40 | 110 | 360 | 48-52 | 0.620 |
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (In) | A Maximum (In) | B (In) | C (In) | D (In) | E (In) | G (In) | Socket Head Screw DIN 912 | Jaw Clamping Force (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-VTI-PD | Inch | 1.65 | 1.77 | 1.93 | 1.61 | 1.26 | 1.18 | 0.39 | 0.16 | 1/2 | 14612 | 107 | 48-52 | 0.60 |
