OK-Vise® Two Knife Edge Grip Jaw Clamps
Jergens OK-Vise® Two Knife Edge Grip Jaw Clamps have grip jaws on both sides. The knife edges penetrate into softer materials to prevent part movement.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
Part Number DK2-VTI-G measurements are given in inches & pounds.

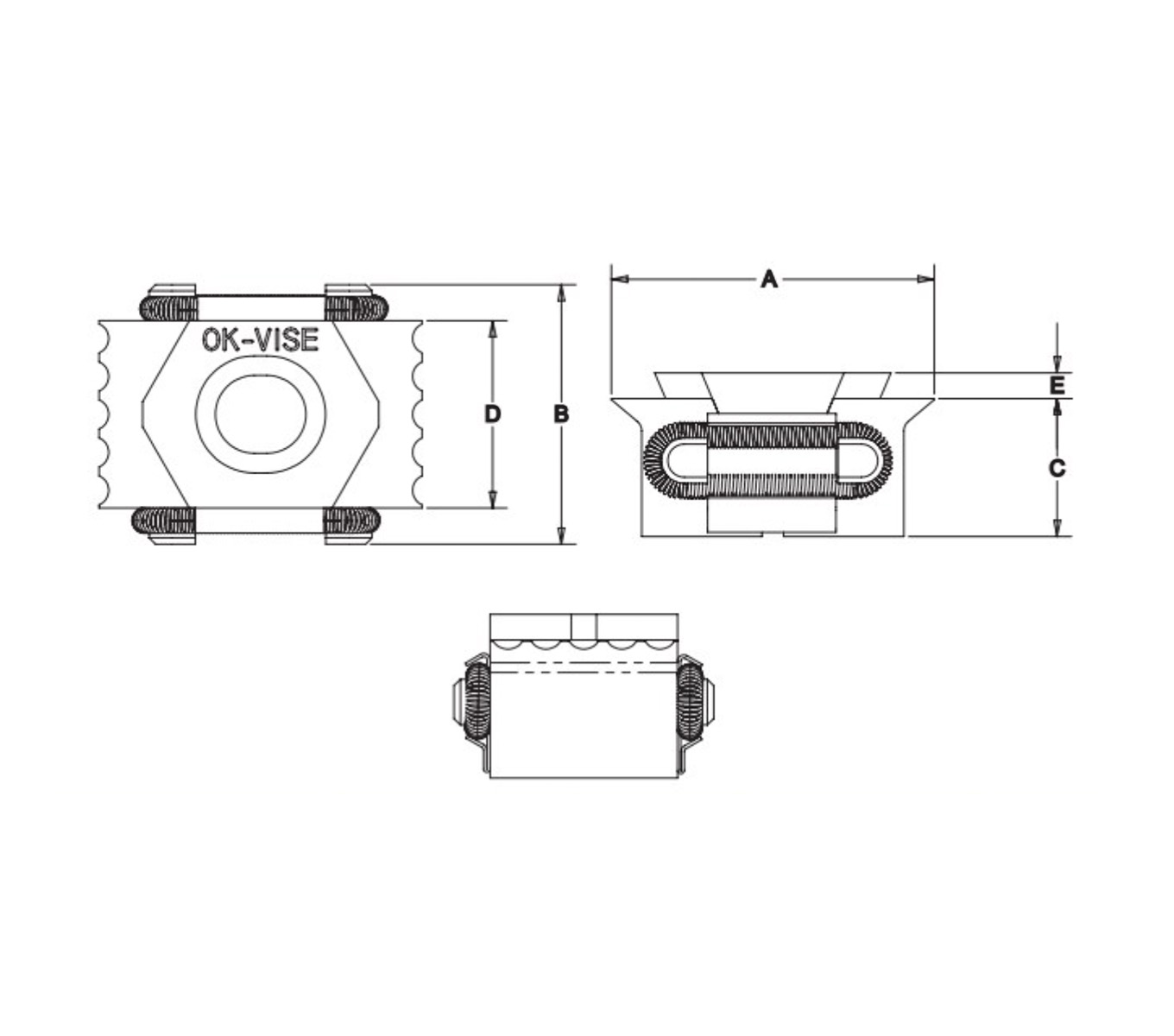

OK-Vise® Two Knife Edge Grip Jaw Clamps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK2-VT-G | Metric | 33 | 35 | 37 | 29 | 15 | 21 | 2.5 | M8 x 20 | 22 | 43 | 38-42 | 0.064 | |
| DK2-VT-G | Metric | 51 | 54.4 | 57.8 | 41 | 22 | 30 | 4 | M12 x 30 | 55 | 145 | 38-42 | 0.212 |
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (In) | A Maximum (In) | B (In) | C (In) | D (In) | E (In) | Socket Head Screw DIN 912 | Jaw Clamping Force (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-VTI-G | Inch | 2.01 | 2.14 | 2.25 | 1.61 | 0.86 | 1.18 | 0.15 | 1/2-13 X 1 1/4 | 12364 | 107 | 38-42 | 0.41 |
