OK-Vise® Two Self-Adjustable Jaw Clamps

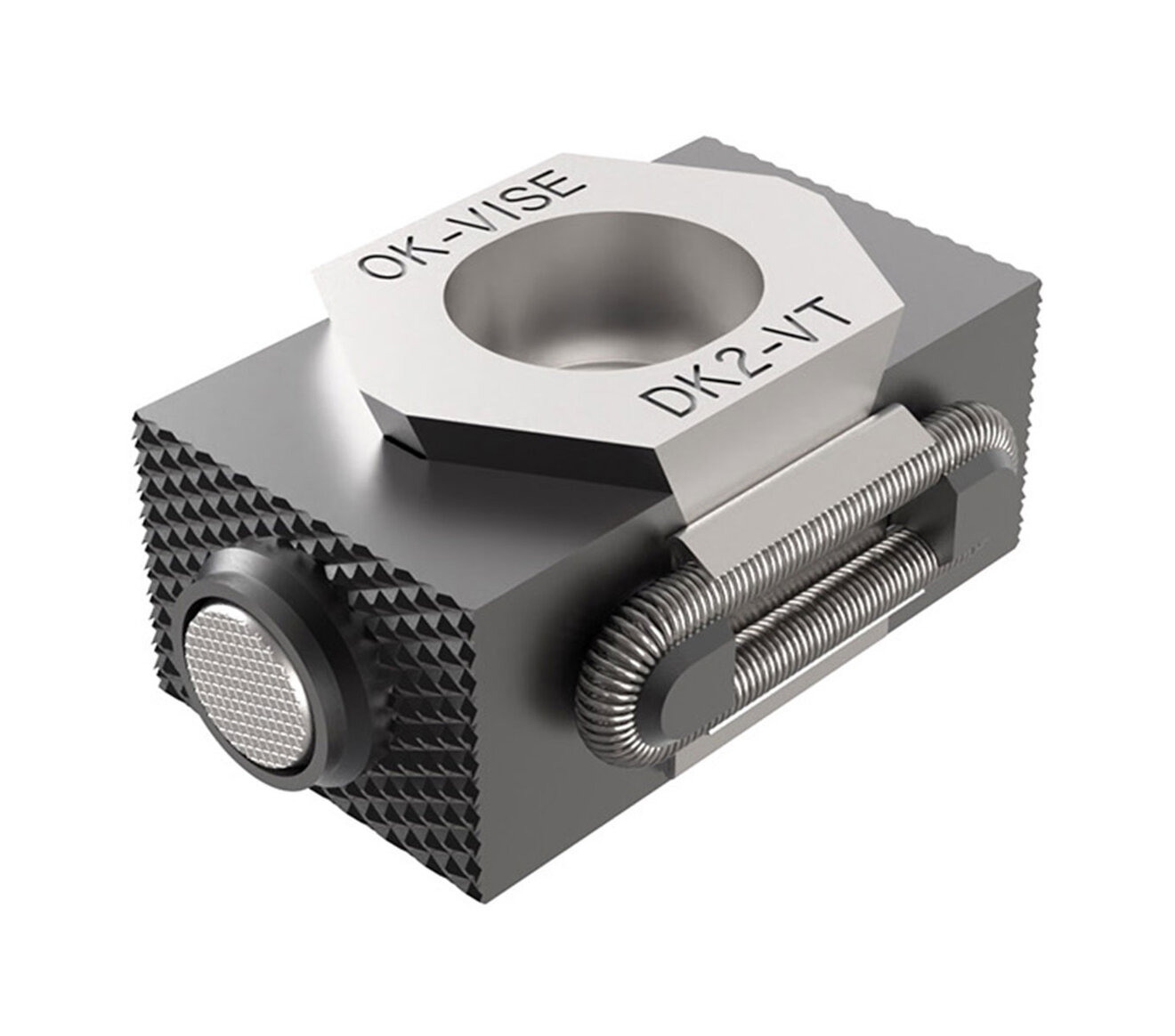

Jergens OK-Vise® Two Self-Adjustable Jaw Clamps have two self-adjustable jaws.
Features, Benefits, & Product Specifications:
-
More efficient usage of machinable area
-
Reduction in the number of tool changes
-
Extended cycle times
-
Free tool access to the workpiece
-
Less space is required compared to traditional vises
-
Pull-down action: no upward or downward movement is required
-
Machinable jaws, special models, & kits are available
Note(s):
Part No. DK2-VTI+E measurements are given in inches & pounds.
OK-Vise® Two Self-Adjustable Jaw Clamps
Select a part number for CAD drawings, price and stock availability.

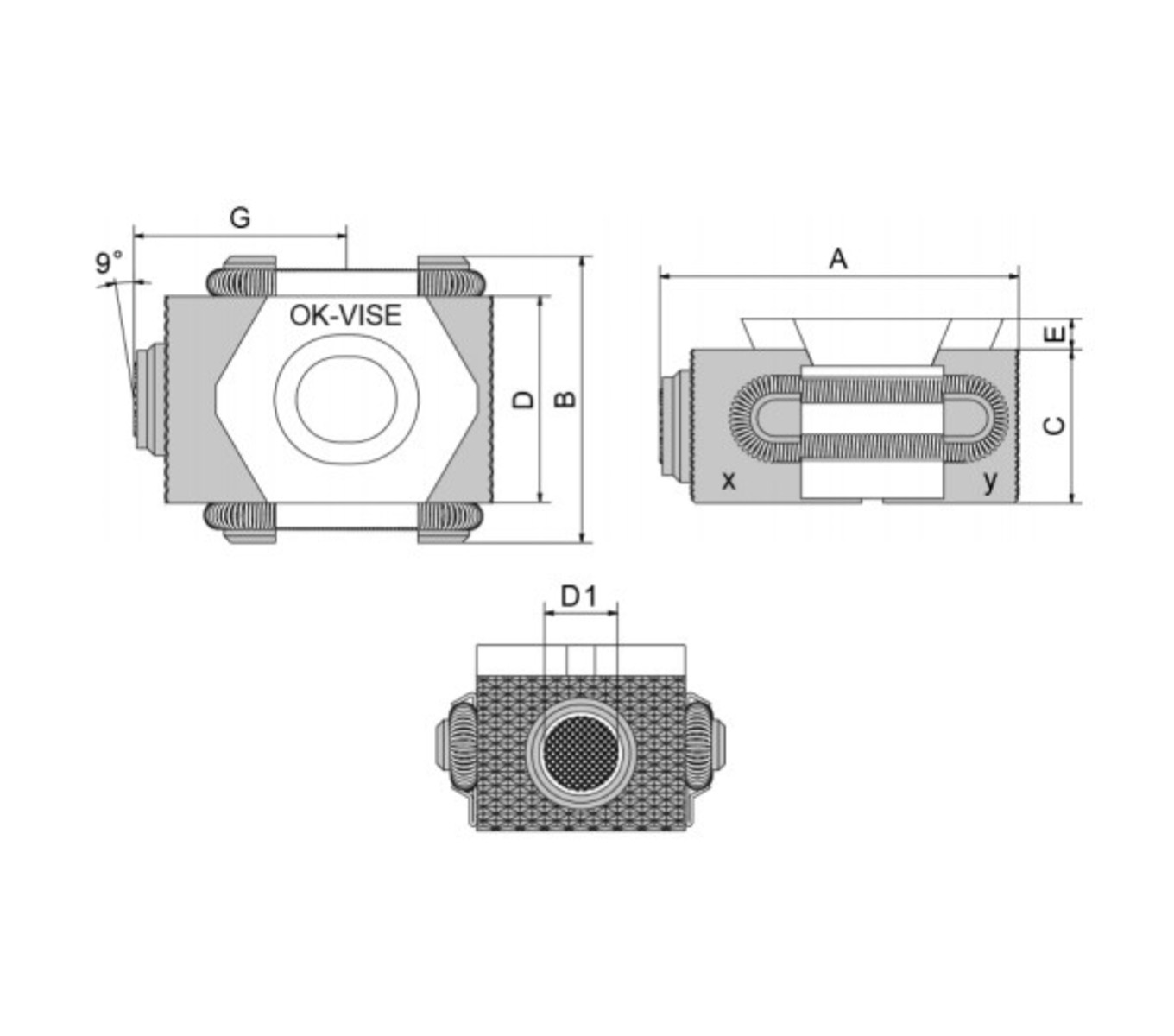

| Part Number | CAD | Unit | A Minimum (mm) | A Optimum (mm) | A Maximum (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Diameter of Serration D1 (mm) | Socket Head Screw DIN 912 | Jaw Clamping Force (kN) | Tightening Torque (Nm) | Hardness of Jaws HRC X | Hardness of Jaws HRC Y | Weight (kgs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BK2-VT-E |
|
Metric | 39 | 41 | 43 | 29 | 15 | 21 | 2.5 | 7.2 | M8 x 20 | 22 | 43 | 30-34 | 48-52 | 0.072 | 0.16 |
| DK2-VT-E |
|
Metric | 62 | 65 | 69 | 41 | 44 | 30 | 4 | 10.7 | M12 x 30 | 55 | 145 | 30-34 | 48-52 | 0.242 | 0.54 |
| DK2-VTI-E |
|
| Part Number | CAD | Unit | A Minimum (In) | A Optimum (In) | A Maximum (In) | B (In) | C (In) | D (In) | E (In) | Diameter of Serration D1 (In) | Socket Head Screw DIN 912 | Jaw Clamping Force (lbs) | Tightening Torque (ft/lbs) | Hardness of Jaws HRC X | Hardness of Jaws HRC Y | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DK2-VTI-E |
|
Inch | 2.44 | 2.56 | 2.72 | 1.61 | 0.86 | 1.18 | 0.15 | 0.42 | 1/2-13 X 1 1/4" | 12364 | 107 | 30-34 | 48-52 | 0.53 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
Related Products
-
OK-Vise® Self-Adjustable Jaw Clamps
