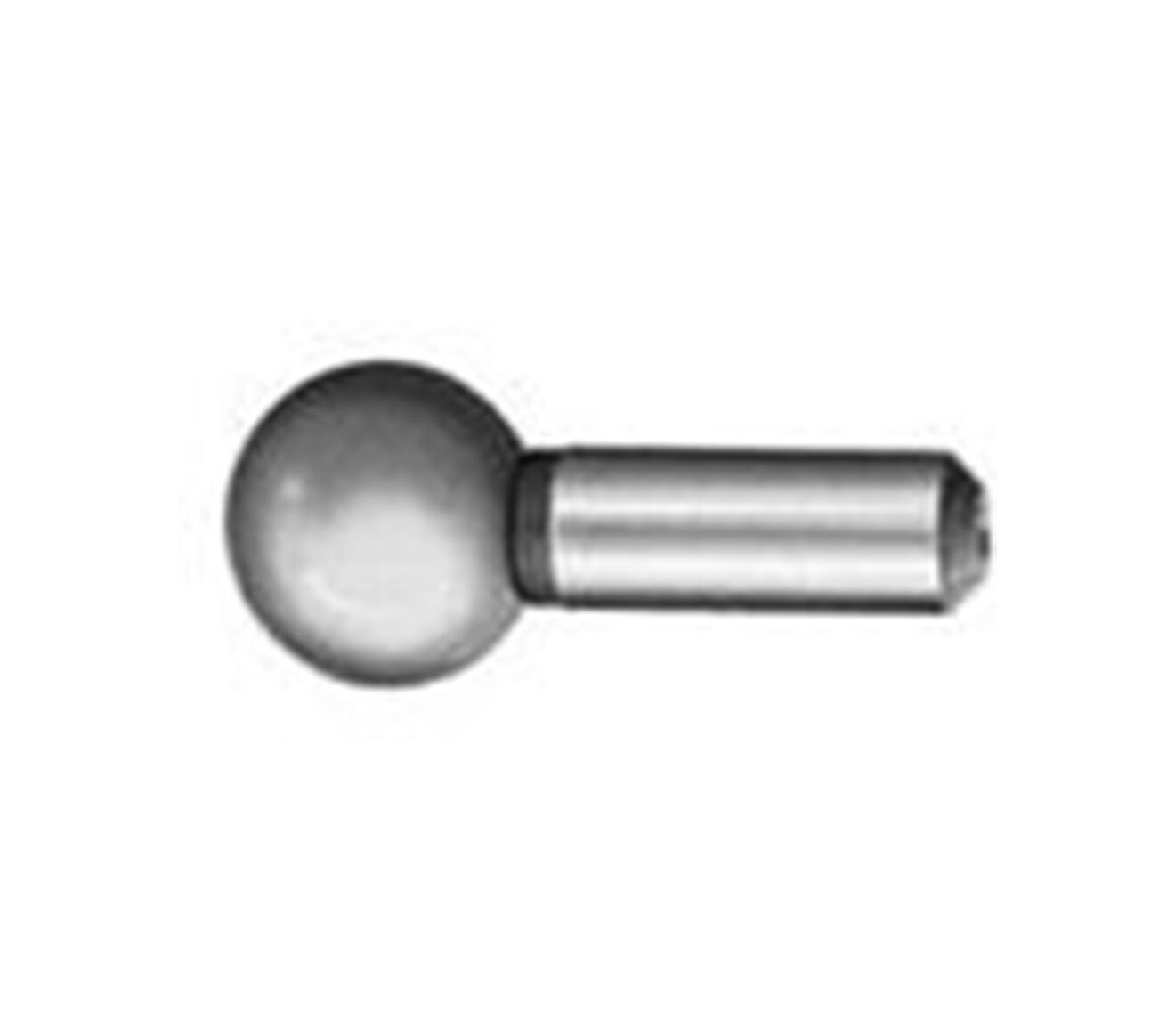

Plain Shank Fixture Balls
Jergens Plain Shank Fixture Balls are assembled by a welding technique that retains the initial high precision and fine finish of the tooling balls.
Features, Benefits, & Product Specifications:
-
Material: Type 440-C Stainless Steel
-
Heat Treat: Hardened RC 58-62
-
Eccentricity of Ball to Shank: 0.0002" TIR (max.)
-
Two-piece welded construction
Note(s):
The weld between the ball and the shank is made so that the ball will drop off if subject to unusually heavy lateral forces. This feature prevents setup and inspection errors that might occur because of the accidental bending of the shank.
Plain Shank Fixture Balls
Select a part number for CAD drawings, price and stock availability.

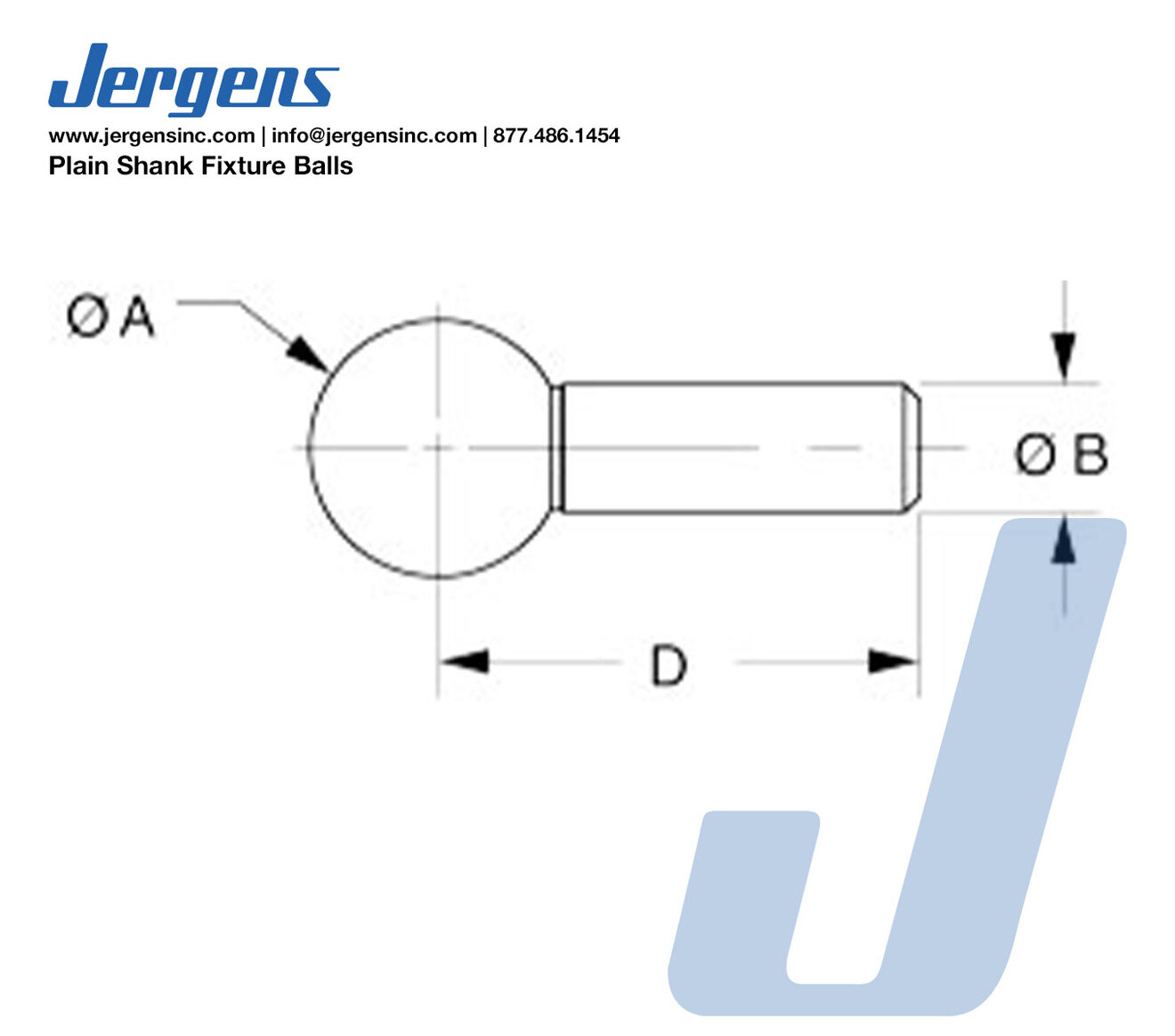

| Part Number | CAD | Unit | A +/- 0.0001 (In) | B +0.0000/- 0.0003 (In) | D +/-0.005 (In) |
|---|---|---|---|---|---|
| 29001 |
|
Inch | 0.2500 | 0.1247 | 0.560 |
| 29002 |
|
Inch | 0.3750 | 0.1872 | 0.750 |
| 29003 |
|
Inch | 0.500 | 0.2497 | 0.940 |
| 29004 |
|
Inch | 0.625 | 0.3122 | 1.060 |
| 29005 |
|
Inch | 0.7500 | 0.3747 | 1.250 |
| 29006 |
|
Inch | 0.875 | 0.4372 | 1.440 |
| 29007 |
|
Inch | 1.000 | 0.4997 | 1.620 |
