Plastic Fluted Knobs
Jergens Plastic Fluted Knobs are designed for heavy torque applications, clamping devices, adjusting rods, etc.
Features, Benefits, & Product Specifications:
- Material: Plastic
-
Finish: Tumble
-
Insert Threads: Brass
-
Bushing: Brass
-
Stud Threads: Zinc Plated Steel
Note:
Part No. 32319: 0.377 I.D. x 1/2" O.D. x 1/2" deep plain brass bushing, drilled and tapped for one #10-32 set screw.
Plastic Fluted Knobs

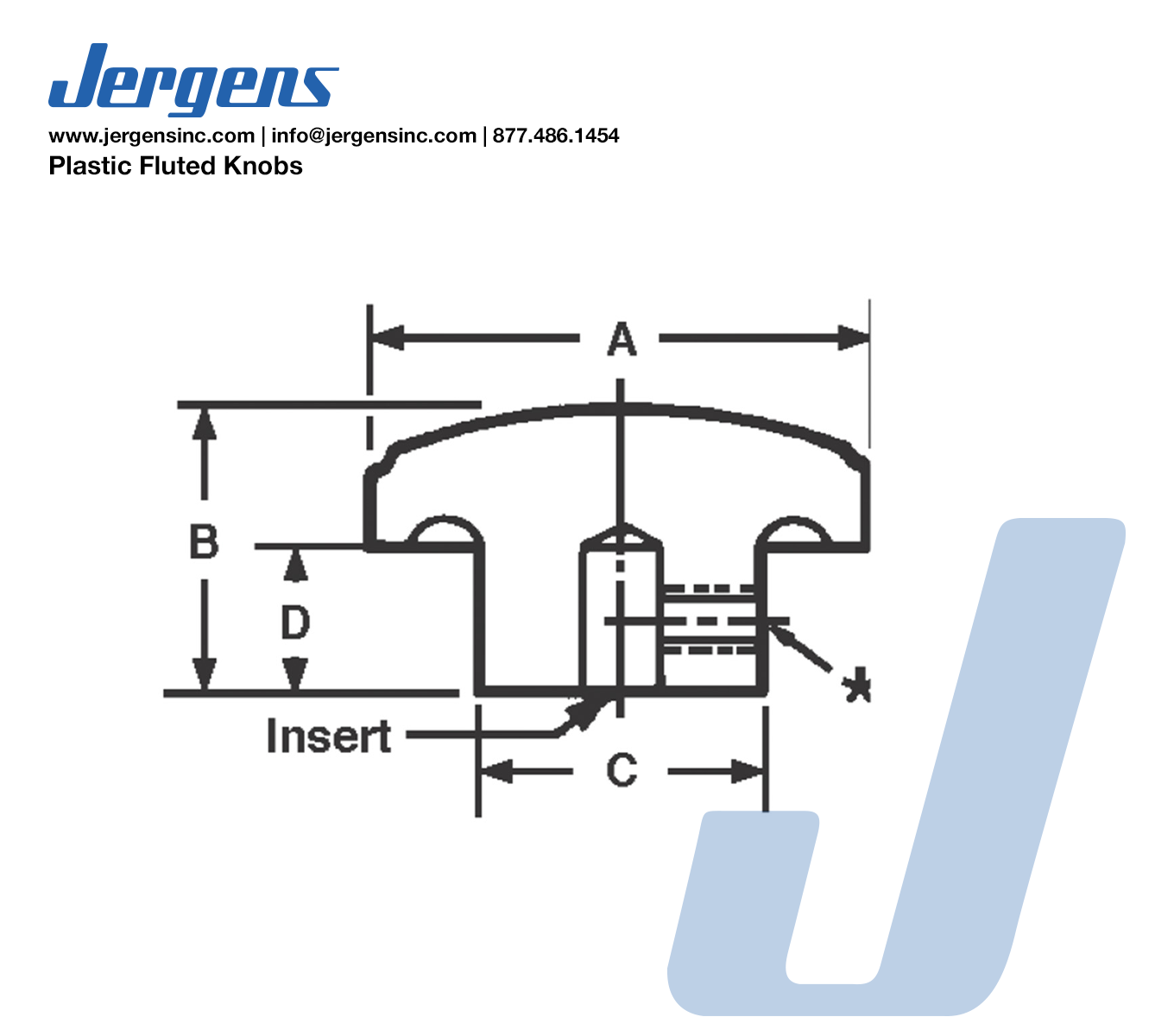

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | A (In) | B (In) | C (In) | D (In) | Insert Thread | Insert Depth (In) | Stud Thread | Stud Length (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 32316 |
|
Inch | Insert | 2 3/8 | 1 5/16 | 1 1/4 | 5/8 | 3/8-16 | 1/2 | - | - |
| 32317 |
|
Inch | Stud | 2 3/8 | 1 5/16 | 1 1/4 | 5/8 | - | - | 3/8-16 | 1 |
| 32318 |
|
Inch | Stud | 2 3/8 | 1 5/16 | 1 1/4 | 5/8 | - | - | 3/8-16 | 2 |
| 32319 |
|
Inch | Bushing | 2 3/8 | 1 5/16 | 1 1/4 | 5/8 | 0.377 | 1/2 | - | - |
| 32320 |
|
Inch | Insert | 1 3/8 | 27/32 | 27/32 | 25/64 | 1/4-20 | 7/16 | - | - |
| 32321 |
|
Inch | Insert | 1 3/8 | 27/32 | 27/32 | 25/64 | 5/16-18 | 7/16 | - | - |
| 32322 |
|
Inch | Insert | 1 3/4 | 1 1/16 | 1 1/16 | 1/2 | 5/16-18 | 7/16 | - | - |
| 32323 |
|
Inch | Insert | 1 3/4 | 1 1/16 | 1 1/16 | 1/2 | 3/8-16 | 1/2 | - | - |
| 32346 | Inch | Insert | 1 3/4 | 1 1/16 | 1 1/16 | 1/2 | 1/4-20 | 7/16 | - | - | |
| 32347 |
|
Inch | Insert | 2 3/8 | 1 5/16 | 1 1/4 | 5/8 | 5/16-18 | 7/16 | - | - |
| 32348 |
|
Inch | Stud | 2 3/8 | 1 5/16 | 1 1/4 | 5/8 | - | - | 5/16-18 | 1 |
