Plastic Knurled Knobs by ELESA®
Jergens Plastic Knurled Knobs by ELESA® have fine pitch knurling on the outside rim of the knob, allowing a safe and comfortable grip. This gives users the ability to operate under the most different working conditions sensitively and ergonomically and simplifies the adjustment of the knob during rapid rotation (or screwing) without any unpleasant angular work for the hand and wrist.
Features, Benefits, & Product Specifications:
- Material: High-Resilience Polypropylene Based (PP) Technopolymer
- Finish: Black Matte
- Insert: Brass Insert with a plain or threaded blind hole
- Knobs with plain blind hole are complete with a set screw
- Resistant to solvents, oils, greases, and other chemical agents
Plastic Knurled Knobs by ELESA®
Select a part number for CAD drawings, price and stock availability.

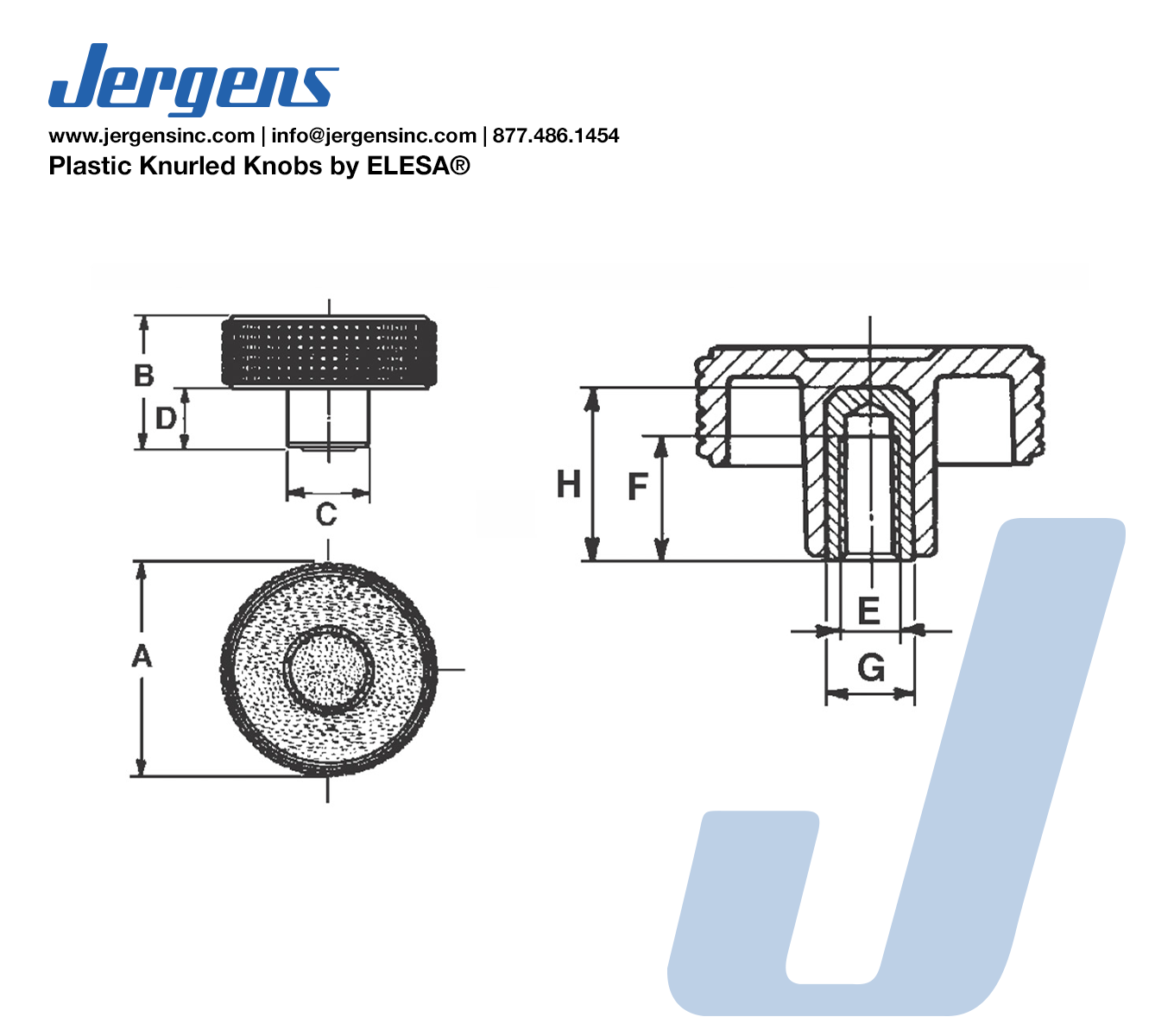

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Thread/Blind Hole E | Set Screw | F (In) | G (In) | H (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 33801 |
|
Inch | 1.22 | 0.87 | 0.59 | 0.35 | 1/4-20 | - | 0.47 | - | - |
| 33802 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 1/4 | 10-32 | 0.55 | 0.47 | 0.67 |
| 33803 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 1/4-20 | - | 0.47 | - | - |
| 33804 |
|
Inch | 1.57 | 0.94 | 0.67 | 0.43 | 5/16-18 | - | 0.51 | - | - |
| 33805 |
|
Inch | 1.97 | 1.18 | 0.79 | 0.53 | 3/8 | 10-32 | 0.79 | 0.63 | 0.98 |
| 33806 |
|
Inch | 1.97 | 1.18 | 0.79 | 0.53 | 5/16-18 | - | 0.70 | - | - |
| 33807 |
|
Inch | 1.97 | 1.18 | 0.79 | 0.53 | 3/8-16 | - | 0.67 | - | - |
| 33808 |
|
Inch | 2.36 | 1.38 | 0.91 | 0.59 | 3/8 | 1/4-20 | 0.79 | 0.63 | 1.18 |
| 33809 |
|
Inch | 2.36 | 1.38 | 0.91 | 0.59 | 3/8-16 | - | 0.79 | - | - |
| 33810 |
|
Inch | 2.36 | 1.38 | 0.91 | 0.59 | 1/2-13 | - | 0.79 | - | - |
