Plastic T-Handle Knobs by ELESA®
Jergens Plastic T-Handle Knobs by ELESA® have been designed to provide quick and easy operation of applications that are frequently accessed. They are ideal for affixing to enclosures, windows, and doors.
Features, Benefits, & Product Specifications:
-
Knob Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Knob Finish: Black Matte
-
Insert: Brass Insert with Threaded Blind Hole
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic T-Handle Knobs by ELESA®
Select a part number for CAD drawings, price and stock availability.

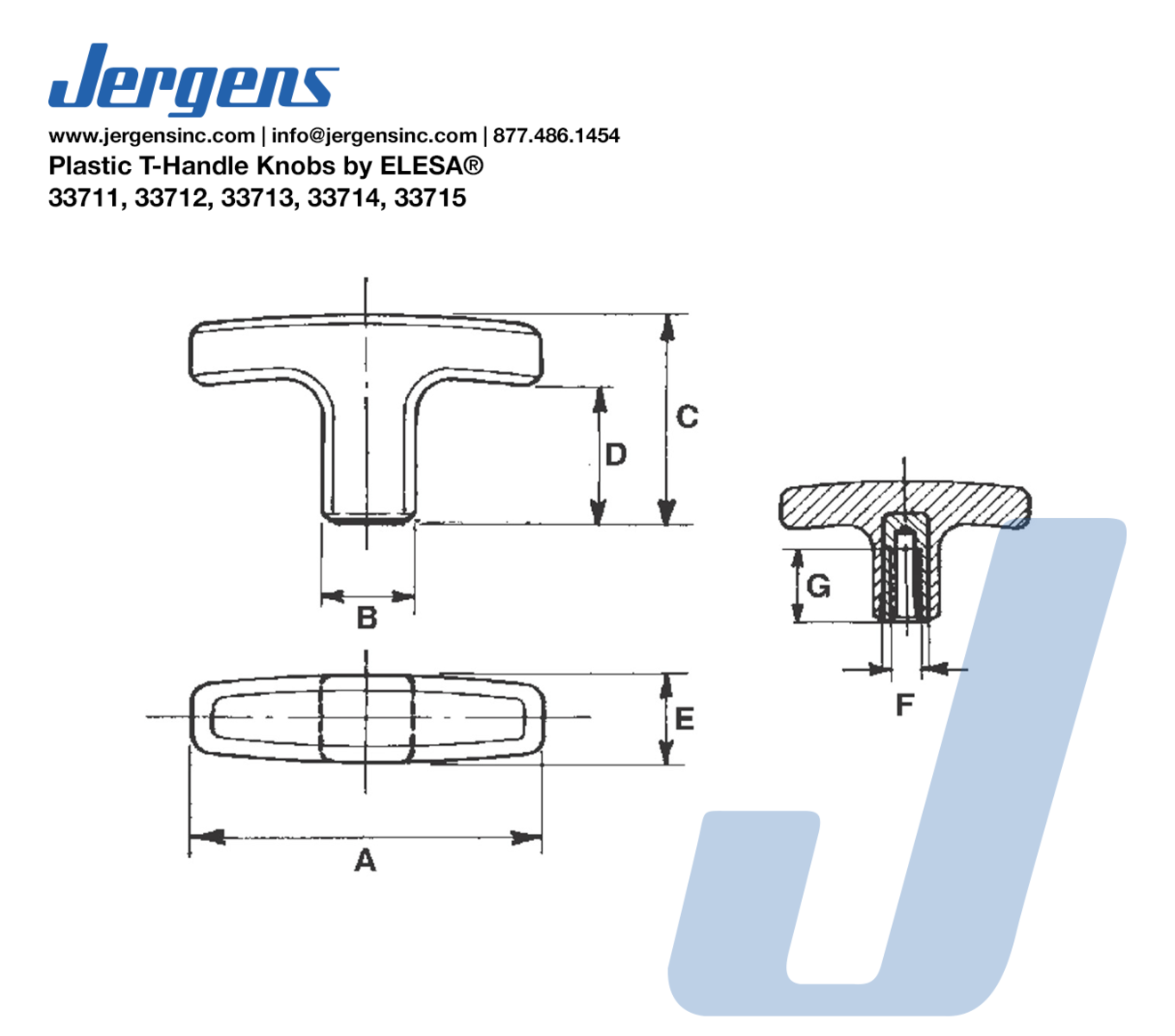

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F | G (In) | Max. Tensile strength / Pull Force (Ft.*lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 33711 |
|
Inch | 1.57 | 0.51 | 1.18 | 0.79 | 0.51 | 1/4-20 | 0.63 | 560 |
| 33712 |
|
Inch | 2.17 | 0.55 | 1.30 | 0.87 | 0.55 | 1/4-20 | 0.71 | 739 |
| 33713 |
|
Inch | 2.64 | 0.63 | 1.46 | 0.98 | 0.63 | 5/16-18 | 0.79 | 1008 |
| 33714 |
|
Inch | 3.15 | 0.79 | 1.61 | 1.02 | 0.79 | 3/8-16 | 0.79 | 1568 |
| 33715 |
|
Inch | 3.66 | 0.83 | 1.77 | 1.12 | 0.83 | 1/2-13 | 0.79 | 1795 |
