Plastic Three Spoked Knobs by ELESA®
Jergens Plastic Three Spoked Knobs by ELESA® have been designed for heavy duty work where the use of a hammer for a firmer clamping action is required.
Features, Benefits, & Product Specifications:
-
Knob Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Knob Finish: Black Matte
-
Inserts:
-
Black-Oxide Steel Insert, plain blind hole
-
Brass Insert, threaded blind hole
-
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Three Spoked Knobs by ELESA®
Select a part number for CAD drawings, price and stock availability.

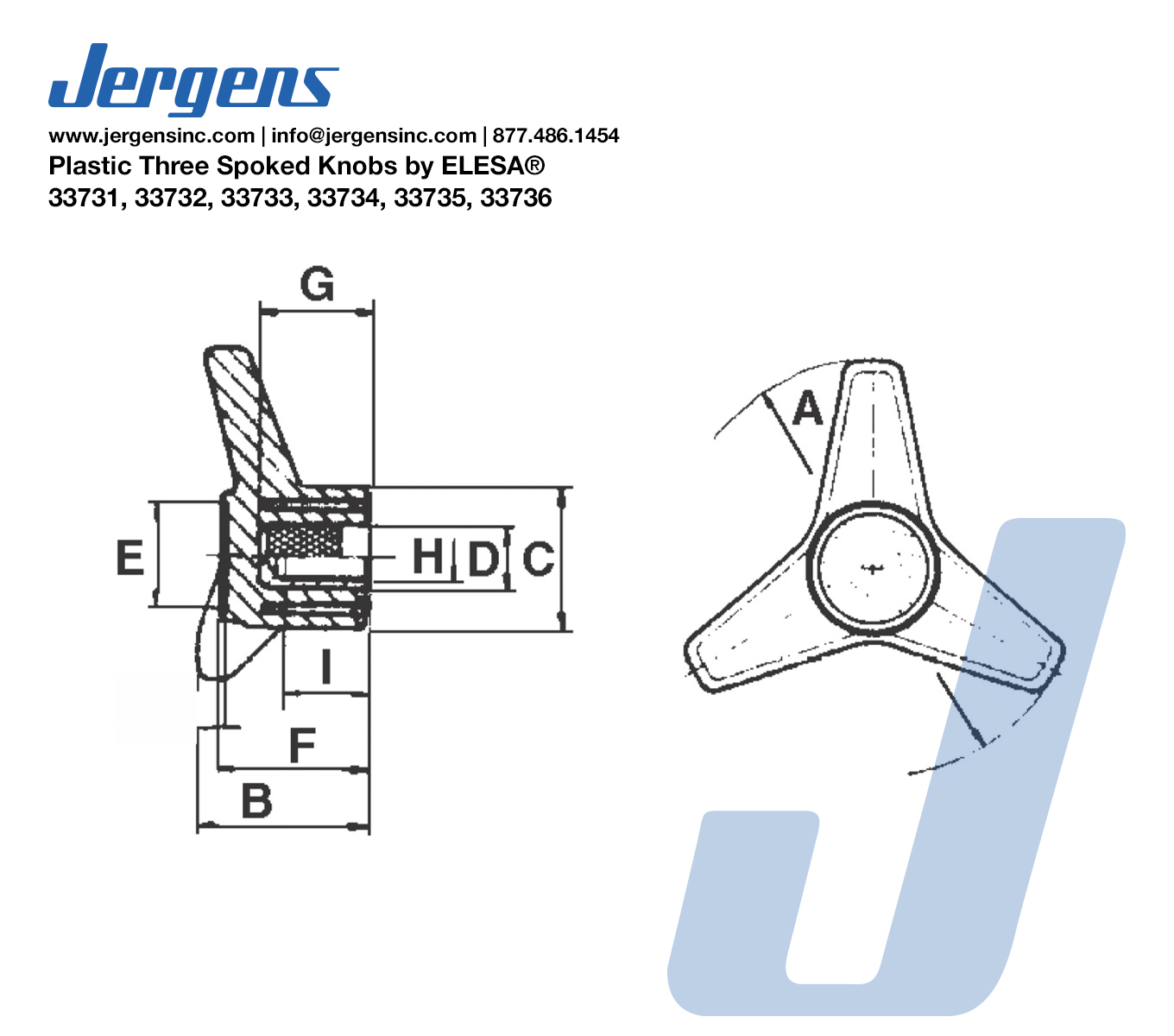

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H | I (In) | Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33731 |
|
Inch | 2.48 | 1.10 | 1.02 | - | 0.70 | 0.98 | - | 5/16-18 | 0.62 | Brass |
| 33732 |
|
Inch | 2.48 | 1.10 | 1.02 | 0.59 | 0.70 | 0.98 | 5/16 | 5/16 | 0.62 | Steel |
| 33733 |
|
Inch | 3.14 | 1.37 | 1.25 | - | 0.82 | 1.18 | - | 3/8-16 | 0.67 | Brass |
| 33735 |
|
Inch | 3.93 | 1.65 | 1.41 | - | 0.98 | 1.41 | - | 1/2-13 | 0.79 | Brass |
| 33736 |
|
Inch | 3.93 | 1.65 | 1.41 | 0.94 | 0.98 | 1.41 | 1/2 | 1/2 | 0.94 | Steel |
