Quick-Loc™ 52mm Square Support Pallets
Jergens Quick-Loc™ Support Pallets function as machinable blanks. These are intended to be modified to accept various tooling components and clamping devices. They provide an ideal base for building fixtures that will be mounted with the Quick-Loc™ system. Square and round styles are available.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Thickness Tolerance: ±0.13mm
-
Quick-Loc™ Pull Studs included
Quick-Loc™ 52mm Square Support Pallets

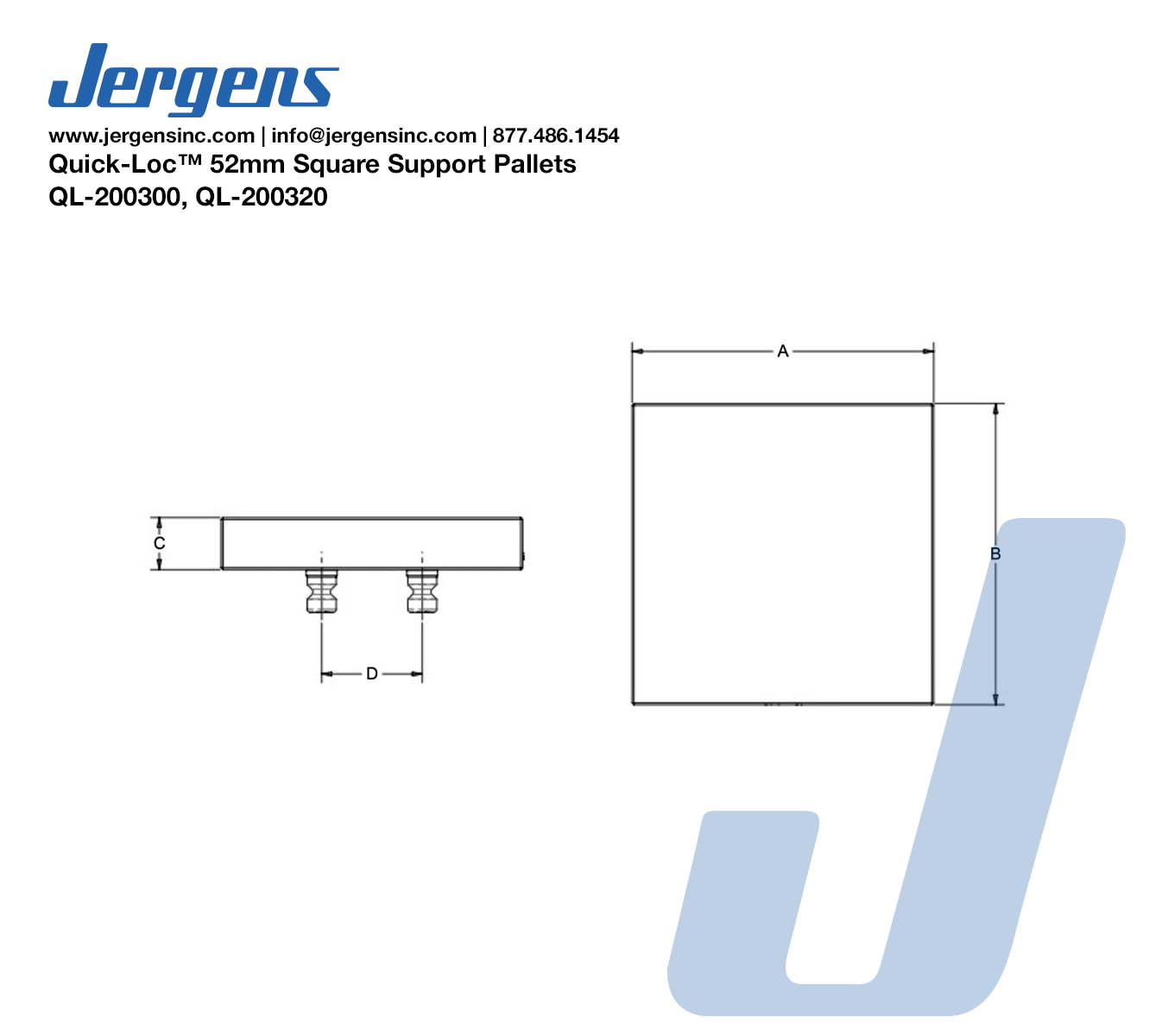

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kgs) | Pull Stud Part Number |
|---|---|---|---|---|---|---|---|---|
| QL-200300 |
|
Metric | 96 | 96 | 27 | 52 | 2.00 | QL-200800 |
| QL-200320 |
|
Metric | 156 | 156 | 27 | 52 | 5.18 | QL-200800 |
