Quick-Loc™ Tri Cubes
Jergens Quick-Loc™ Cubes function like miniature quick change tooling columns. They are well suited for multiple fixture setups as well as 4th axis applications in VMC’s. The upright faces feature Quick-Loc™ Receivers built directly into the body of the cube.
Features, Benefits, & Product Specifications:
-
Material & Finish: Thru-Hardened Alloy Steel, Jergens M-Coat
-
Repeatability: 0.0003” (0.008mm)
-
Floating and opposing clamping wedge assembly
-
Sealed wedge bodies
-
Acme threaded screw for increased strength and long life
-
O-ring lifters for positive separation of top tooling
-
Versatile standard mounting options
-
Made in U.S.A.
-
Patented design
Quick-Loc™ Tri Cubes
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Pull Stud Part Number | Maximum Torque (Nm) | Mounting Holes | Weight (kgs) |
|---|---|---|---|---|---|---|
| QL2-400300 | Metric | QL-200800 | 30 | 10.7 | 16.5 | |

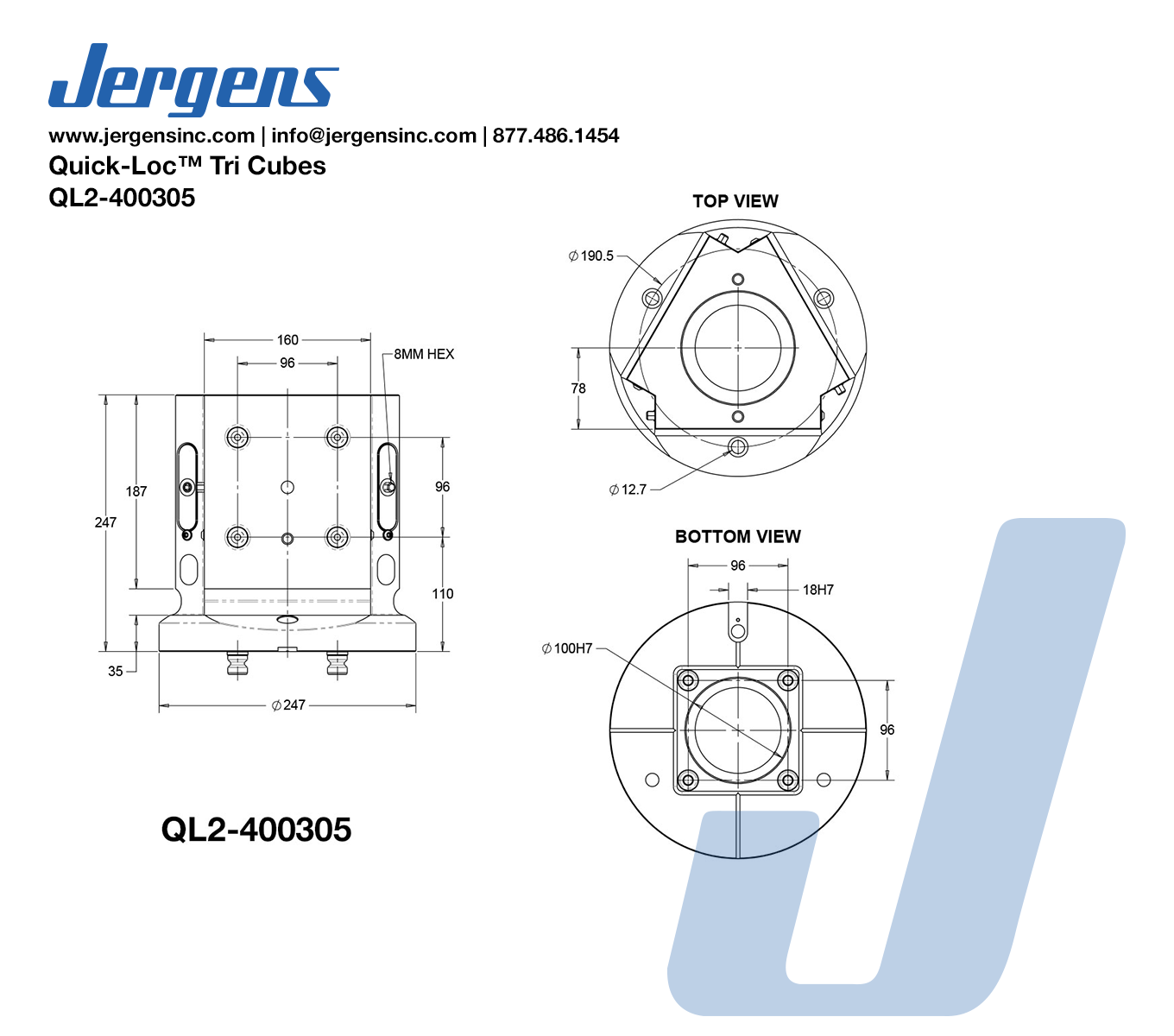

| QL2-400305 | Metric | QL-200805 | 30 | 12.7 | 39.8 |
