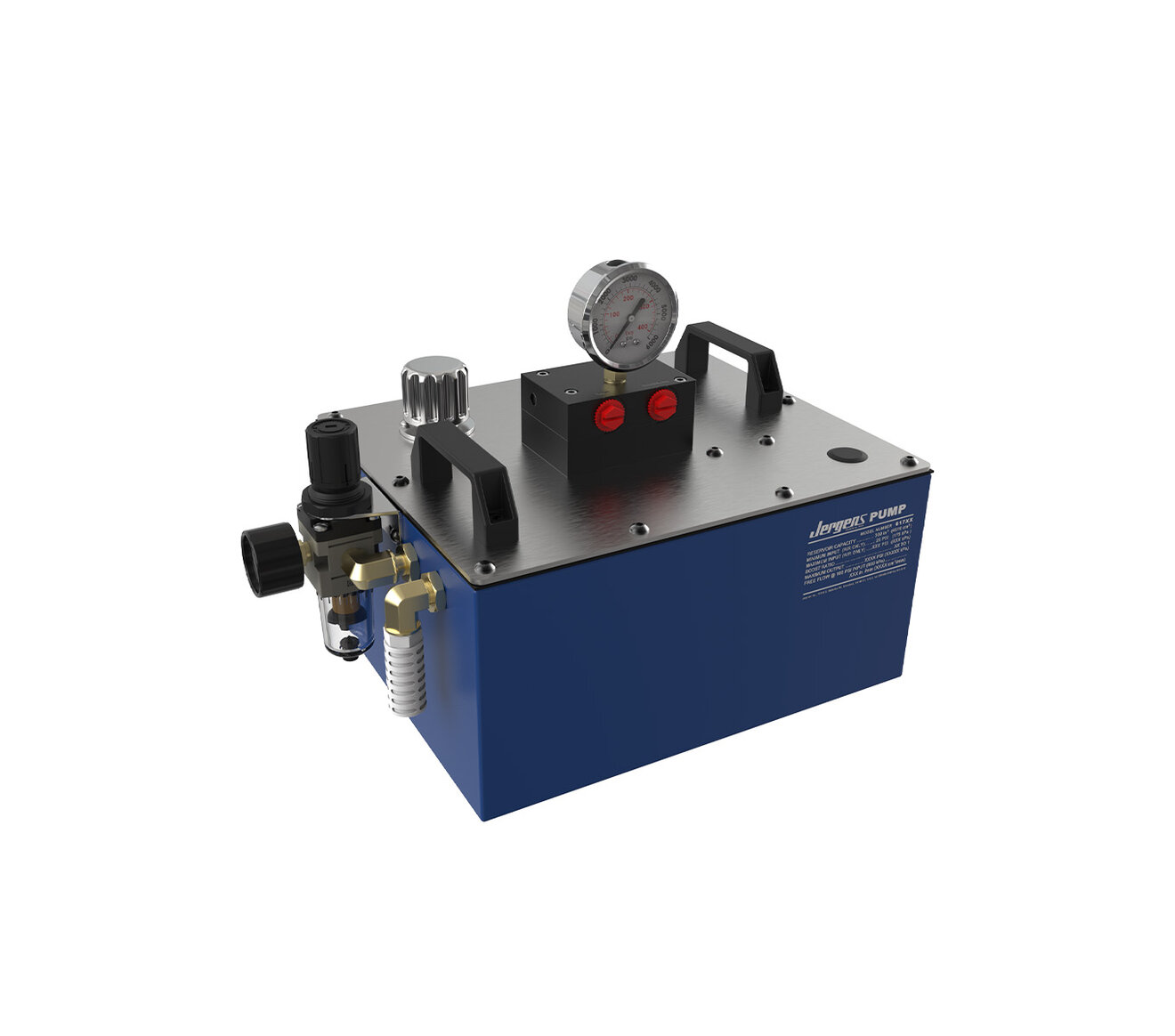

Shoebox Air Powered Hydraulic Pumps
Jergens Air Powered Hydraulic Pumps are used as a power source to activate hydraulic clamps. Shop air is introduced into the filter/regulator and converted to hydraulic pressure. The 'shoebox' pump is a low cost, compact unit used on smaller hydraulic circuits. Its small size offers the versatility of mounting on wheels (such as a workcart) and movign the pump from workstation to workstation. This pump allows independent control of multiple workstations.
Features, Benefits, & Product Specifications:
-
Available in 36:1 and 71:1 boost ratios
Note(s):
A ten cubic inch accumulator (Part No. 62601) is available to increase the clamping speed if needed.
Documents
Shoebox Air Powered Hydraulic Pumps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Reservoir Capacity (cu. in.) | Minimum Input (psi) | Maximum Input (psi) | Boost Ratio | Maximum Output (psi) | Free Flow @100psi (cu in/min) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 61755 | Inch | 300 | 25 | 125 | 36:1 | 4500 | 100 | 24 | |
| 61756 | Inch | 300 | 25 | 85 | 71:1 | 6000 | 50 | 24 |
