Spiral Groove Stainless Steel Pull Dowels
Jergens Spiral Groove Pull Dowels feature a groove cut to allow trapped air to be released. They are typically used in blind hole applications. Their internally threaded hole allows removal of pull dowels with a standard screw.
- Material: 300 Series (18-8) Stainless Steel
- Length Tolerance: ±0.010"
- Diameter Tolerance: ±0.0001"
- Recommended Hole Size: 0.0005" under nominal diameter
- Surface Finish: 8 µin
- Specification: ASME B18.8.2
Spiral Groove Stainless Steel Pull Dowels

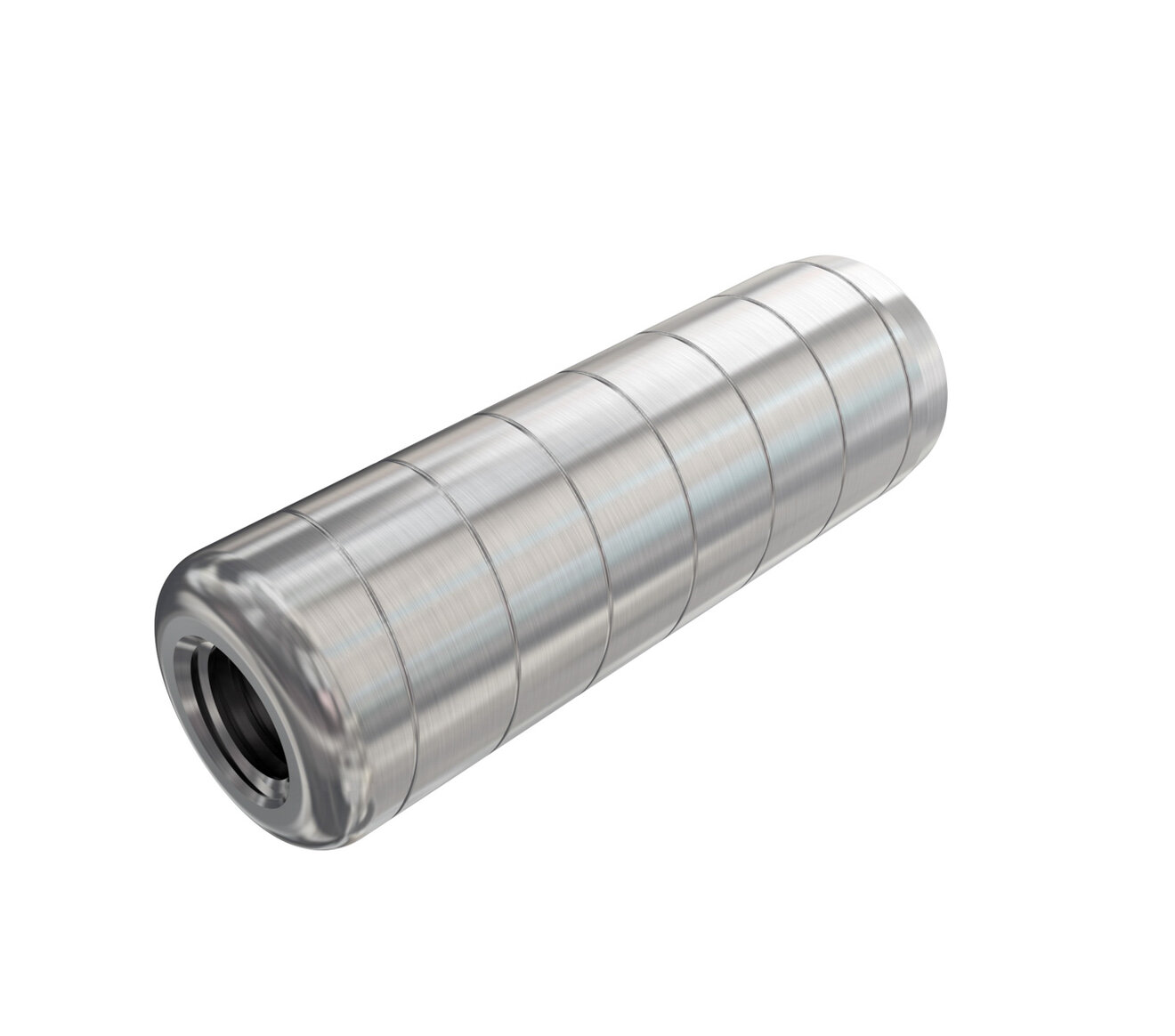

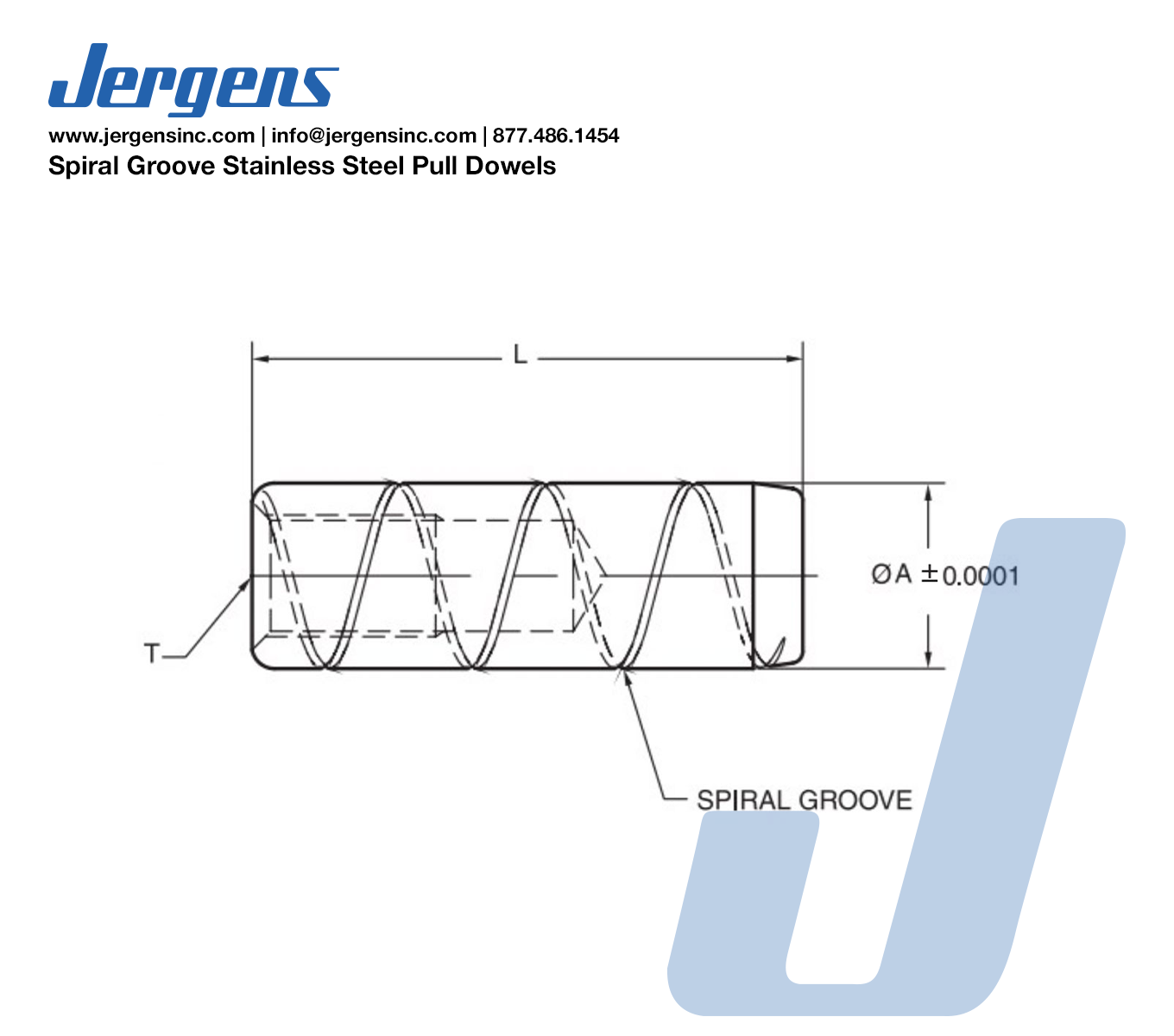

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Diameter (In) | Nominal (In) | Length (In) | Internal Thread |
|---|---|---|---|---|---|---|
| 31800-SS |
|
Inch | 1/4 | 0.2502 | 1/2 | 8-32 |
| 31801-SS |
|
Inch | 1/4 | 0.2502 | 3/4 | 8-32 |
| 31802-SS |
|
Inch | 1/4 | 0.2502 | 1 | 8-32 |
| 31803-SS |
|
Inch | 1/4 | 0.2502 | 1 1/4 | 8-32 |
| 31804-SS |
|
Inch | 1/4 | 0.2502 | 1 1/2 | 8-32 |
| 31805-SS |
|
Inch | 1/4 | 0.2502 | 1 3/4 | 8-32 |
| 31806-SS |
|
Inch | 1/4 | 0.2502 | 2 | 8-32 |
| 31807-SS |
|
Inch | 1/4 | 0.2502 | 2 1/4 | 8-32 |
| 31808-SS |
|
Inch | 1/4 | 0.2502 | 2 1/2 | 8-32 |
| 31809-SS |
|
Inch | 5/16 | 0.3127 | 3/4 | 10-32 |
| 31810-SS |
|
Inch | 5/16 | 0.3127 | 1 | 10-32 |
| 31811-SS |
|
Inch | 5/16 | 0.3127 | 1 1/4 | 10-32 |
| 31812-SS |
|
Inch | 5/16 | 0.3127 | 1 1/2 | 10-32 |
| 31813-SS |
|
Inch | 5/16 | 0.3127 | 2 | 10-32 |
| 31814-SS |
|
Inch | 5/16 | 0.3127 | 2 1/4 | 10-32 |
| 31815-SS |
|
Inch | 5/16 | 0.3127 | 2 1/2 | 10-32 |
| 31816-SS |
|
Inch | 3/8 | 0.3752 | 3/4 | 10-32 |
| 31817-SS |
|
Inch | 3/8 | 0.3752 | 1 | 10-32 |
| 31818-SS |
|
Inch | 3/8 | 0.3752 | 1 1/4 | 10-32 |
| 31819-SS |
|
Inch | 3/8 | 0.3752 | 1 1/2 | 10-32 |
| 31820-SS |
|
Inch | 3/8 | 0.3752 | 1 3/4 | 10-32 |
| 31821-SS |
|
Inch | 3/8 | 0.3752 | 2 | 10-32 |
| 31822-SS |
|
Inch | 3/8 | 0.3752 | 2 1/4 | 10-32 |
| 31823-SS |
|
Inch | 3/8 | 0.3752 | 2 1/2 | 10-32 |
| 31824-SS |
|
Inch | 3/8 | 0.3752 | 3 | 10-32 |
| 31825-SS |
|
Inch | 7/16 | 0.4377 | 1 | 1/4-20 |
| 31826-SS |
|
Inch | 7/16 | 0.4377 | 1 1/2 | 1/4-20 |
| 31827-SS |
|
Inch | 7/16 | 0.4377 | 2 | 1/4-20 |
| 31828-SS |
|
Inch | 1/2 | 0.5002 | 3/4 | 1/4-20 |
| 31829-SS |
|
Inch | 1/2 | 0.5002 | 1 | 1/4-20 |
| 31830-SS |
|
Inch | 1/2 | 0.5002 | 1 1/4 | 1/4-20 |
| 31831-SS |
|
Inch | 1/2 | 0.5002 | 1 1/2 | 1/4-20 |
| 31832-SS |
|
Inch | 1/2 | 0.5002 | 1 3/4 | 1/4-20 |
| 31833-SS |
|
Inch | 1/2 | 0.5002 | 2 | 1/4-20 |
| 31834-SS |
|
Inch | 1/2 | 0.5002 | 2 1/4 | 1/4-20 |
| 31835-SS |
|
Inch | 1/2 | 0.5002 | 2 1/2 | 1/4-20 |
| 31836-SS |
|
Inch | 1/2 | 0.5002 | 3 | 1/4-20 |
| 31837-SS |
|
Inch | 1/2 | 0.5002 | 3 1/2 | 1/4-20 |
| 31838-SS |
|
Inch | 1/2 | 0.5002 | 4 | 1/4-20 |
| 31839-SS |
|
Inch | 5/8 | 0.6252 | 1 1/4 | 1/4-20 |
| 31840-SS |
|
Inch | 5/8 | 0.6252 | 1 1/2 | 1/4-20 |
| 31841-SS |
|
Inch | 5/8 | 0.6252 | 2 | 1/4-20 |
| 31842-SS |
|
Inch | 5/8 | 0.6252 | 2 1/4 | 1/4-20 |
| 31843-SS |
|
Inch | 5/8 | 0.6252 | 2 1/2 | 1/4-20 |
| 31844-SS |
|
Inch | 5/8 | 0.6252 | 3 | 1/4-20 |
| 31845-SS |
|
Inch | 5/8 | 0.6252 | 4 | 1/4-20 |
| 31846-SS |
|
Inch | 3/4 | 0.7502 | 1 1/2 | 5/16-18 |
| 31847-SS |
|
Inch | 3/4 | 0.7502 | 1 3/4 | 5/16-18 |
| 31848-SS |
|
Inch | 3/4 | 0.7502 | 2 | 5/16-18 |
| 31849-SS |
|
Inch | 3/4 | 0.7502 | 2 1/2 | 5/16-18 |
| 31850-SS |
|
Inch | 3/4 | 0.7502 | 3 | 5/16-18 |
| 31851-SS |
|
Inch | 3/4 | 0.7502 | 4 | 5/16-18 |
| 31852-SS |
|
Inch | 1 | 1.0002 | 2 | 3/8-16 |
| 31853-SS |
|
Inch | 1 | 1.0002 | 2 1/2 | 3/8-16 |
| 31854-SS |
|
Inch | 1 | 1.0002 | 3 | 3/8-16 |
| 31855-SS |
|
Inch | 1 | 1.0002 | 4 | 3/8-16 |
| 31856-SS |
|
Inch | 1 | 1.0002 | 1 3/4 | 3/8-16 |
