Swing Clamps
Jergens Swing Clamps are designed to swing 80° away from the workpiece to allow easy accessibility for part insertion or removal. Swing Clamps may be used in any attitude. The clamping arm may be positioned to swing either to the left or right by repositioning one cap screw. The right-hand swing is standard.
- Right or Left-Hand Swing
- Clamping Force: 4800 lbs.
- Operates in any position
- The clamp arm has 1/4" of vertical travel
- Can be used with flood coolant
Note: Swing Clamps are built to operate on pre-fill systems allowing much larger circuits to be used. To use a Swing Clamp with a standard booster or with any other power source you must use the Flow Limit Valve.
Documents

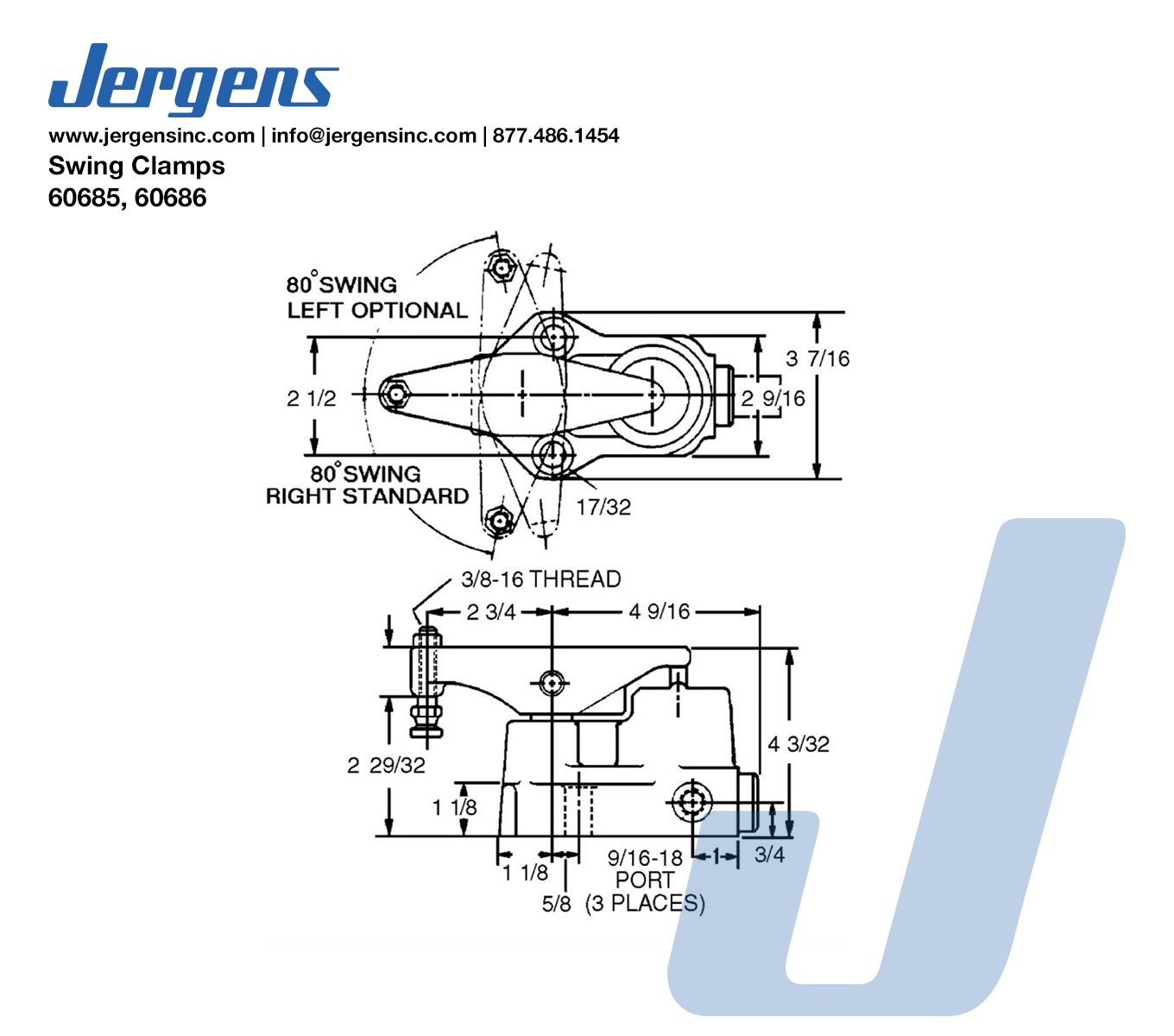

Swing Clamps
![](/Products/60685.jpg)
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Operating Stroke (In) | Effective Piston Area (sq. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Clamp Swing | Repair Kit Part Number |
---|---|---|---|---|---|---|---|---|---|
60685 |
|
Inch | 0.80 | 1.6 | 80 | 3000 | 4800 | Right | 62131 |
60686 |
|
Inch | 0.80 | 1.6 | 80 | 3000 | 4800 | Left | 62131 |
